TE Connectivity AMP Connectors 5745968-7 — D-Sub Cable Assemblies

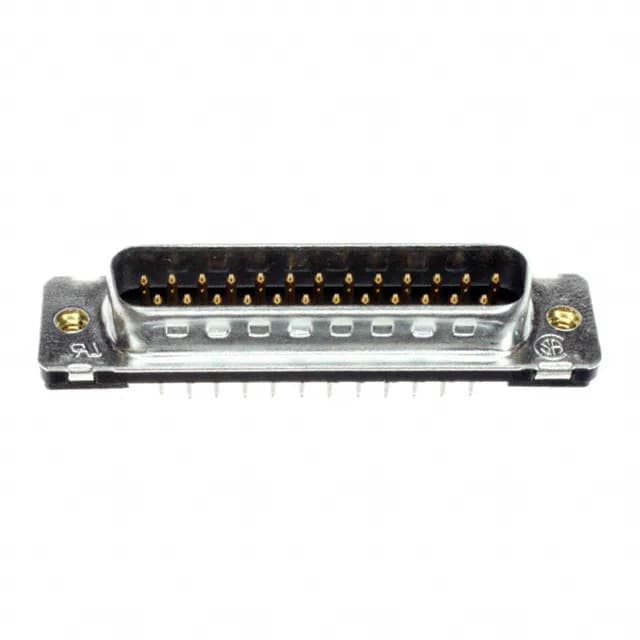

TE Connectivity 5745968-7 AMPLIMITE HD-20 D-Sub Plug, 25 Pos

MPN5745968-7
Active

TE Connectivity AMPLIMITE HD-20 D-Sub Plug, 25 Position, 2 Row, Vertical Through Hole, Solder Termination, Gold Flash Contacts, Steel Shell, UL94 V-0, 6A, 125V

$10.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745968-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5745968-7 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5745968-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions25
Contact finish thicknessFlash

Product details

The TE Connectivity 5745968-7 is a standard-density DB-25 D-sub plug from the AMPLIMITE HD-20 series, carrying 25 signal contacts in two rows. The 6 A per-contact rating with gold flash plating suits signal-level duty and occasional power switching, while the steel shell with tin plating provides basic EMI containment.

Termination and Mating — Vertical Solder, DB-25 Shell

Threaded inserts (4-40 thread) accept standard D-sub jackscrews for positive locking against vibration. The mating connector is a standard D-sub receptacle (female) with the same shell size 3 (DB, B) layout.

What the Gold Flash Plating Means for Duty

The contact finish is gold flash — a thin gold layer over the brass base material. Flash plating provides good corrosion resistance and low contact resistance at initial mate.

Frequently asked questions

Is 5745968-7 RoHS compliant?

Yes, the 5745968-7 is listed as ROHS3 Compliant, meeting the latest EU RoHS directive requirements.

Does 5745968-7 include jackscrews or only threaded inserts?

The connector has threaded 4-40 inserts in the housing/shell flange. Jackscrews are not included — they must be ordered separately to secure the mated pair.
