TE Connectivity AMP Connectors 5747099-3

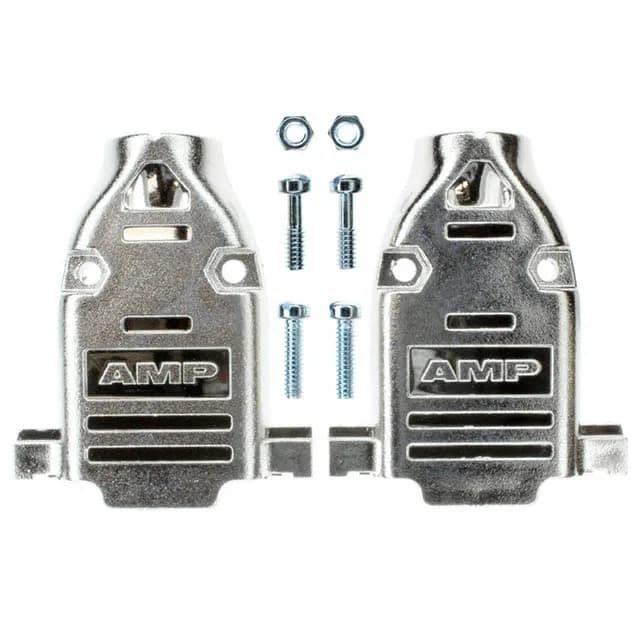

TE AMPLIMITE 5747099-3 Backshell, 15pos, Shielded

MPN 5747099-3
Active

TE Connectivity AMPLIMITE two-piece backshell, 15 positions, shell size A, shielded, nickel over copper plating, 180° cable exit, includes 4-40 mating screws and strain relief hardware.

$11.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5747099-3 specifications
ParameterValue
SeriesAMPLIMITE
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit180°
ColorSilver
MaterialThermoplastic
Primary materialPlastic
PackageBulk
PlatingNickel over Copper
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Strain Relief
ShieldingShielded
Positions15
Compatible D-Sub size15pos and HD26pos
Compatible shell sizeA

Product details

Shielded Two-Piece Backshell for 15-Position D-Sub

The TE Connectivity AMPLIMITE 5747099-3 is a two-piece backshell designed to terminate and shield the cable end of a standard 15-position D-sub connector. It accepts round cable with a 180° straight exit and includes the mating screws and strain relief hardware — no separate fastener order needed. The shell is shielded with nickel over copper plating for EMI containment, and the thermoplastic insert provides the cable clamp and strain relief structure. This shell size A backshell fits both standard 15-position and high-density 26-position D-sub connectors, so if you are swapping between standard and HD pinouts on the same panel cutout, the same backshell works for both. The 4-40 threaded inserts are built into the assembly — you do not need to source jackscrews separately.

Hardware and Shielding — What Ships in the Box

The backshell ships in bulk packaging with the assembly hardware and strain relief already included. The two-piece clamshell design traps the cable jacket between the plastic insert and the metal shell halves, then the 4-40 mating screws pass through both halves to secure the assembly to the D-sub connector face.

MPN
5747099-3
