The press-fit compliant pin eliminates soldering — the pin displaces the plated hole wall during insertion, creating a gas-tight joint that survives rework and field replacement without heat damage.

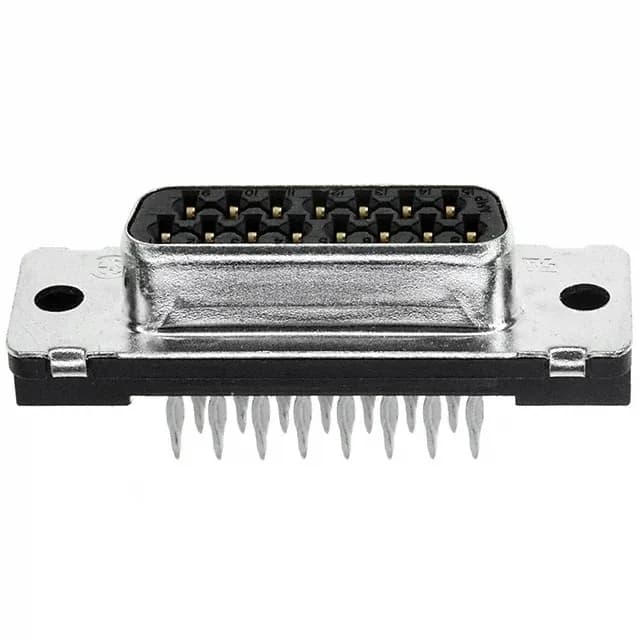

This receptacle mates with any standard DA-15 (DE-15S) D-Sub plug — the shell size 2 (DA, A) layout is the same footprint used across the AMPLIMITE HD-20 and most industry D-subs. The unthreaded flange accepts a standard D-Sub slide-lock or screw-lock kit; the press-fit termination means the board hole diameter must match the compliant-pin spec (typically 0.040 inch ±0.003 for standard AMPLIMITE press-fit tails — confirm against the product drawing for your board thickness). Two rows of 15 positions at the standard 0.108-inch row spacing.
