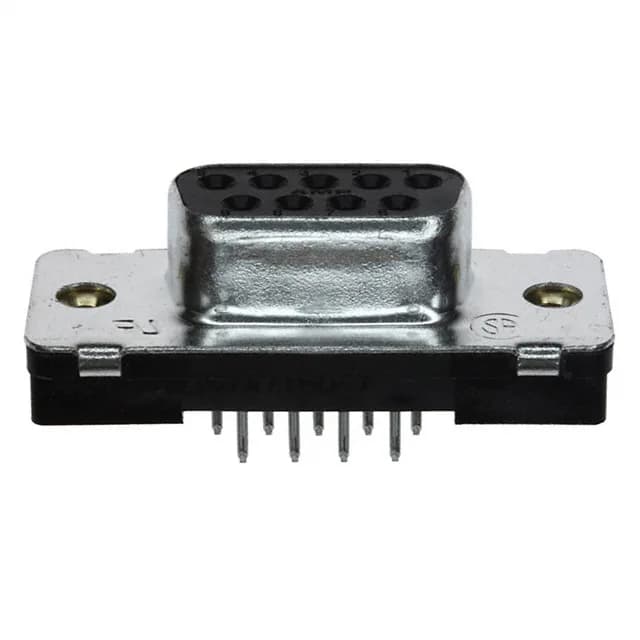

TE 5747150-7 AMPLIMITE HD-20 D-Sub Receptacle, 9 Pos, 6A

MPN 5747150-7
Active

TE Connectivity AMPLIMITE HD-20 D-Sub Receptacle, 9 Position, 2 Row, Solder Termination, Through Hole, Gold Flash, 6A, 125V, DE-1 Shell Size, Black.

$5.4200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5747150-7 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5747150-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions9
Contact finish thicknessFlash

Product details

Standard 9-Pin D-Sub for Signal and Low-Power Interconnects

Shell Size and Mating Compatibility

This receptacle uses the DE-1 (E) shell layout, the standard 9-position D-sub footprint. It mates with any standard 9-pin D-sub plug having the same shell size and 4-40 threaded hardware — no proprietary keying to track. The steel shell with tin plating provides basic EMI shielding for the signal pair.

Contact Finish and Duty Cycle

Gold flash plating on the mating surface (contact finish thickness: flash) is the entry-level gold grade. It prevents oxidation during storage and first mate, but the thin layer wears faster under repeated connect-disconnect cycles.
