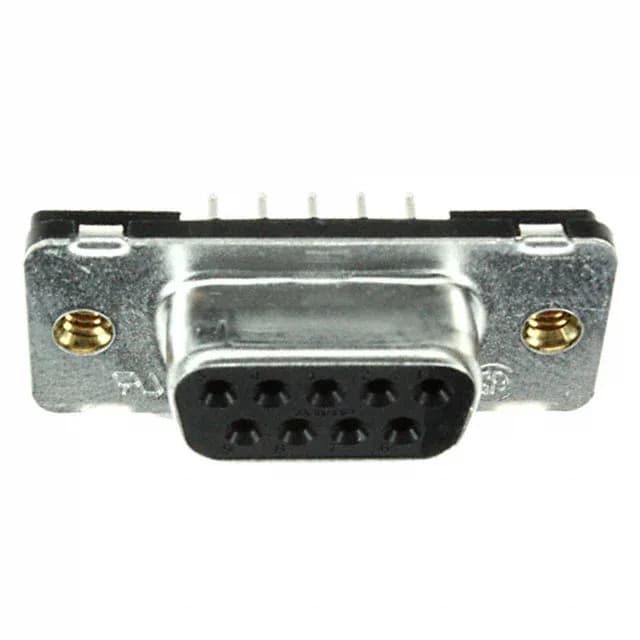

The TE Connectivity AMPLIMITE HD-20 5747150-8 is a standard D-Sub receptacle with 9 female socket positions arranged in two rows — the classic DB-9 pinout used for RS-232 serial ports, industrial instrumentation, and low-voltage I/O panels. The shell size is 1 (DE, E), which is the standard DE-9 footprint, so it mates with any male DB-9 plug that uses the same 4-40 threaded locking inserts.
If your application involves frequent cable swaps or panel access, this plating grade is the right call.
Through-hole solder termination — the contacts are soldered directly into the PCB, and the shell has threaded 4-40 inserts on the flange for screw-lock mating with the plug. No press-fit, no IDC, no crimp: this is a straight solder-to-board connection. The vertical orientation means the connector sits perpendicular to the board, so plan for the board-edge clearance and the panel cutout for the D-sub shell.
