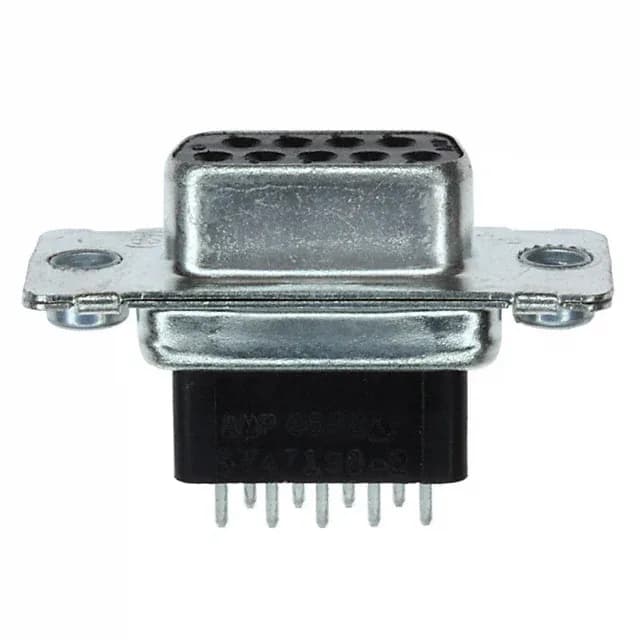

TE 5747190-2 AMPLIMITE HDP-20 D-Sub Receptacle, 9 Pos, 6A

MPN5747190-2
Active

TE Connectivity AMPLIMITE HDP-20 D-sub receptacle, 5747190-2, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts.

$14.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5747190-2 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

5747190-2 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions9
Contact finish thicknessFlash

Product details

9-Position D-Sub, 6A — Standard DB9 Footprint

The through-hole solder termination and vertical orientation suit it for fixed PCB mounting where the mating cable connector is a standard DB9 plug.

Gold Flash vs. Thicker Plating — Mating Cycle Reality

The contact finish is gold flash — the thinnest gold layer in the AMPLIMITE HDP-20 range. For a one-time install or infrequent field service, flash gold is fine. If the connector sees repeated disconnect-reconnect cycles in a harness, step up to a thicker gold-plated sibling.

Board-Mount Fit and Panel Cutout

This is a through-hole solder receptacle with board-side 4-40 threaded inserts for flange mounting — the standard DE-9 panel cutout (0.984" x 0.395") applies. The steel shell with tin plating provides basic EMI shielding when mated to a grounded DB9 plug.
