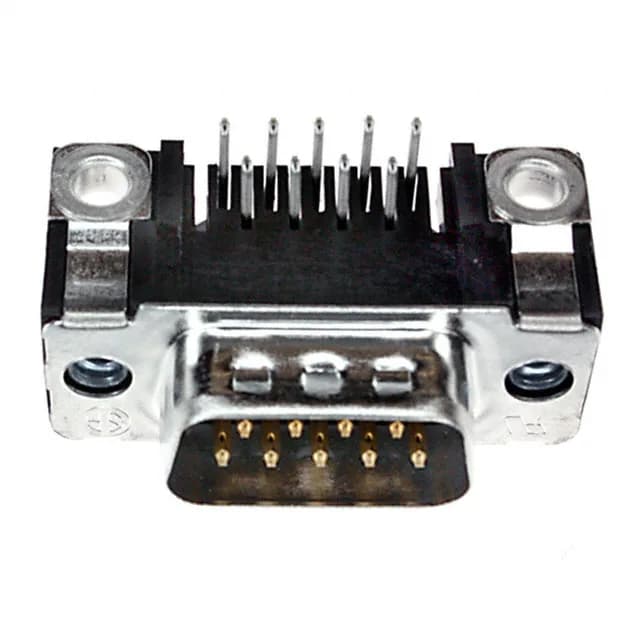

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 9 positions, 2 rows, right-angle through-hole solder, gold-plated brass contacts, 6A, 125V, steel shell with tin plating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Ground Strap, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 9 |
It carries gold-plated brass contacts rated 6 A per circuit at 125 V, with a steel shell finished in tin and grounding indents plus a ground strap for shield continuity.
This makes the 5747250-4 suited for applications where EMI containment or shield grounding is part of the system design — common in industrial control panels and test equipment.
