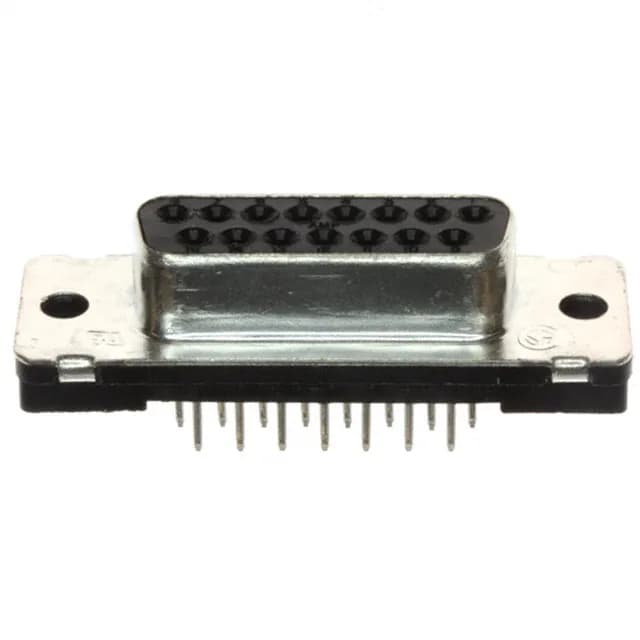

TE 5747299-4 AMPLIMITE HD-20 D-Sub Receptacle, 15-Pin

MPN5747299-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747299-4, 15 positions, 2 rows, 6A, 125V, through-hole solder, gold-plated contacts, UL94 V-0.

$14.7000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5747299-4 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5747299-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5747299-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

It mates with the matching AMPLIMITE HD-20 D-Sub plug (solder cup or crimp) using the DA (A) shell size — the same layout used for DB-15 connectors.

Through-hole solder termination — the receptacle mounts vertically to the PCB with the unthreaded housing flange for panel-mount or board-lock retention. The steel shell with tin plating provides EMI shielding and mates with the plug's ground indents. Two rows of 15 positions (8 + 7) at the standard 0.108-inch (2.74 mm) pitch between rows; the pin layout follows the DA-15 footprint common across the AMPLIMITE HD-20 family.

Temperature Range and Flammability

RoHS compliant per.

Frequently asked questions

Is 5747299-4 RoHS compliant?

Yes, the 5747299-4 is listed as RoHS Compliant per TE Connectivity's lifecycle record.

What is the mating connector for 5747299-4?

The 5747299-4 mates with a standard AMPLIMITE HD-20 D-Sub plug (male) in the DA-15 shell layout. This includes solder-cup, crimp, or PCB-mount plug variants with the same 15-position, 2-row arrangement.
