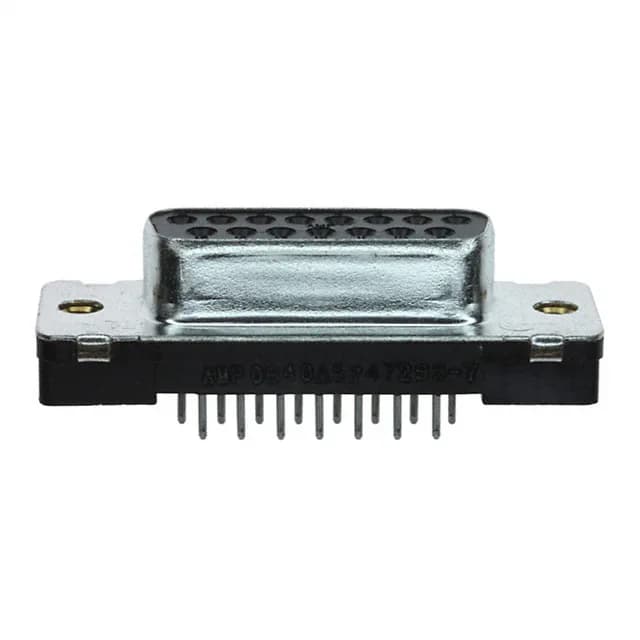

TE 5747299-7 AMPLIMITE HD-20 D-Sub Receptacle, 15-Pos, 6A

MPN5747299-7
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747299-7, 15 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, steel shell with tin plating, 4-40 threaded insert, UL94 V-0.

$5.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5747299-7 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5747299-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15
Contact finish thicknessFlash

Product details

The steel shell with tin plating provides EMI shielding and mechanical robustness, while the UL94 V-0 polyester housing meets flammability requirements for equipment inside enclosures.

The gold flash contact finish (phosphor bronze base) provides corrosion resistance for moderate mating cycles typical of field-serviceable equipment; for high-cycle or corrosive environments, a thicker gold plating would be preferred. The 4-40 threaded insert on the flange is the standard D-sub panel-mount hardware — confirm your mating plug and panel have matching 4-40 jackscrews or standoffs.

Frequently asked questions

Does 5747299-7 have a standard 4-40 threaded insert for panel mounting?

Yes, the flange feature is a housing/shell (4-40) threaded insert, which is the standard D-sub panel-mount hardware.
