TE Connectivity AMP Connectors 5747301-2 — D-Sub Cable Assemblies

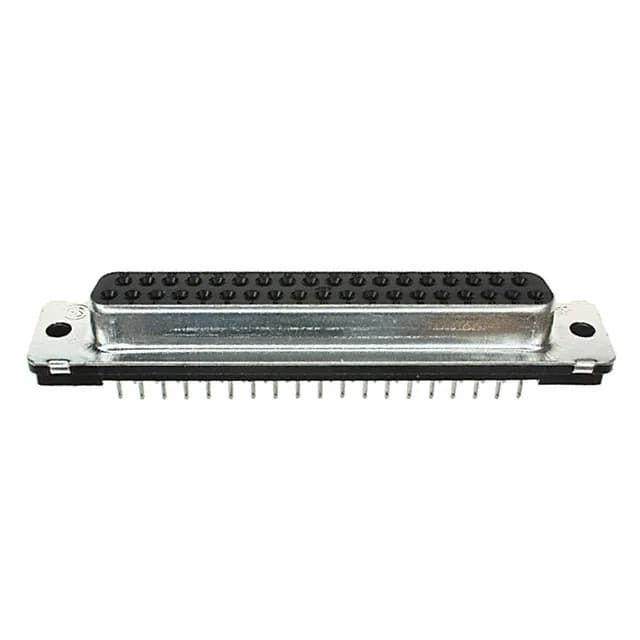

TE Connectivity 5747301-2, AMPLIMITE HD-20 D-Sub Receptacle

MPN5747301-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747301-2, 37 positions, 2 rows, 6A, 125V, through-hole solder, gold-plated contacts, shell size 4 (DC, C), black, UL94 V-0.

$14.0000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5747301-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5747301-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 5747301-2 is a 37-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for board-to-cable signal interconnects in industrial control, data communications, and test equipment.

Rated 6A per contact at 125V, this receptacle carries signal-level current — think I/O lines, not a power bus.

Mates with any standard 37-position D-sub male plug (solder cup or PCB mount) — no proprietary keying, no oddball shell size. The receptacle has an unthreaded housing/shell flange, so you'll need a male plug with threaded inserts or a separate jack-screw kit if you want the screw-lock retention. Termination is through-hole solder; the 2-row layout fits the standard D-sub footprint. The steel shell with tin plating provides basic EMI shielding when mated.

Frequently asked questions

Is 5747301-2 compatible with standard 37-pin D-sub connectors?

Yes.

What is the difference between AMPLIMITE HD-20 and standard D-sub?

AMPLIMITE HD-20 is TE Connectivity's branded D-sub series. The 5747301-2 uses the same shell size, pin layout, and mounting dimensions as any standard 37-pin D-sub — no proprietary differences that affect fit or function.
