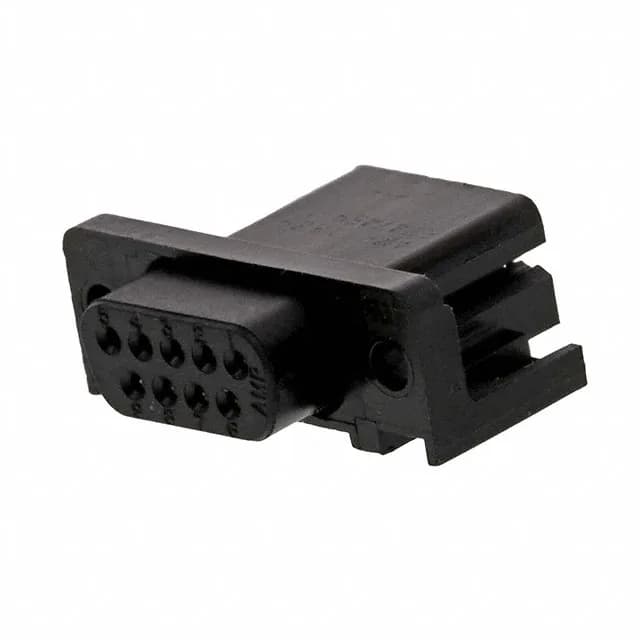

9-Position DE-9 Right-Angle D-Sub, Gold Flash Contacts
The 2-row arrangement with 9 signal contacts matches the classic DE-9 pinout used on RS-232, serial, and industrial communication ports. Rated 6A per contact at 125V, with gold flash over phosphor bronze. The unthreaded flange (housing/shell) means the mating connector secures with standard D-sub hardware — jack-screws or slide-locks — not a threaded backshell.
Right-Angle Board Fit and Termination
Right-angle through-hole termination puts the solder tails on the same side as the connector body, so the board footprint needs clearance for the shell and the backset spacing of 0.590" (14.99 mm) from the board edge to the mounting holes. That backset dimension is the one to check against your enclosure cutout — the unthreaded flange holes line up with standard DE-9 panel openings. The receptacle accepts the mating DE-9 plug (male pin) half — any standard AMPLIMITE HD-20 or compatible D-sub plug with 9 positions in the same shell layout. Solder termination is straightforward for hand assembly or wave solder; no press-fit tooling needed.
