TE Connectivity AMP Connectors 5747459-2 — D-Sub Cable Assemblies

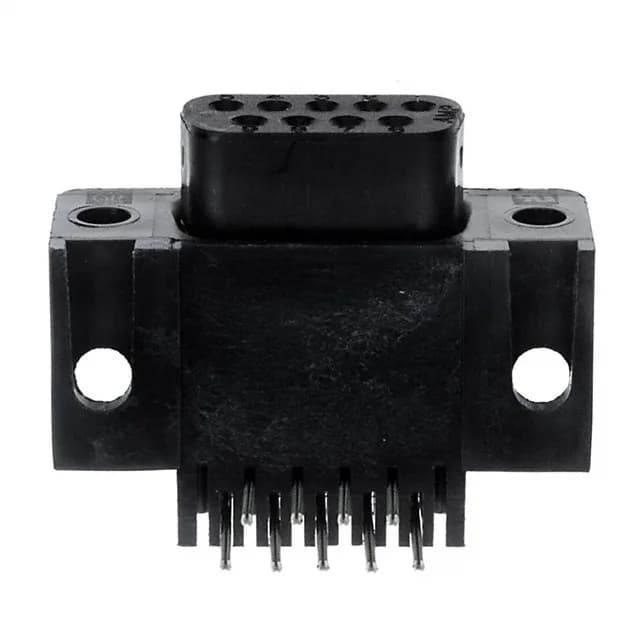

TE Connectivity 5747459-2 AMPLIMITE HD-20 D-Sub Receptacle

MPN5747459-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747459-2, 9 positions, 2 rows, right-angle through-hole, solder termination, gold 30.0µin contacts, 6A, 125V.

$8.6300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5747459-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5747459-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray

All specifications

5747459-2 additional specifications
ParameterValue
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.590\" (14.99mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

Right-Angle D-Sub, 9 Positions — the Board-Edge Fit

It terminates via solder to a through-hole, right-angle mount — the 0.590" (14.99 mm) backset spacing places the connector body well away from the PCB edge, giving clearance for a standard D-sub hood or backshell without the housing interfering with adjacent components.

Gold Plating and Current — Signal Duty, Not Power

Against a tin-plated sibling, this gold version costs more but avoids the fretting corrosion that kills tin contacts in low-voltage, low-current signal paths. The 5747459-1 is the same part with a different plating option — check your BOM's plating callout before substituting.

Frequently asked questions

Where can I buy 5747459-2 and how do I get a price?

The 5747459-2 is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

Is 5747459-2 RoHS compliant?

Yes, the 5747459-2 is RoHS compliant per the manufacturer's listing.

Can I use 5747459-2 with a standard D-sub hood?

Yes. The DE (E) shell size and unthreaded housing flange accept standard D-sub hoods and backshells designed for a 9-position D-sub. The 0.590" backset spacing provides clearance for the hood without interfering with the PCB edge.

Is 5747459-2 the same as 5747459-1?

Both share the same base product number (5747459) and are 9-position right-angle D-sub receptacles. The difference is in contact plating — the -2 variant carries gold plating (30.0 µin), while the -1 variant typically uses a different plating finish. Confirm the plating requirement on your BOM before substituting.
