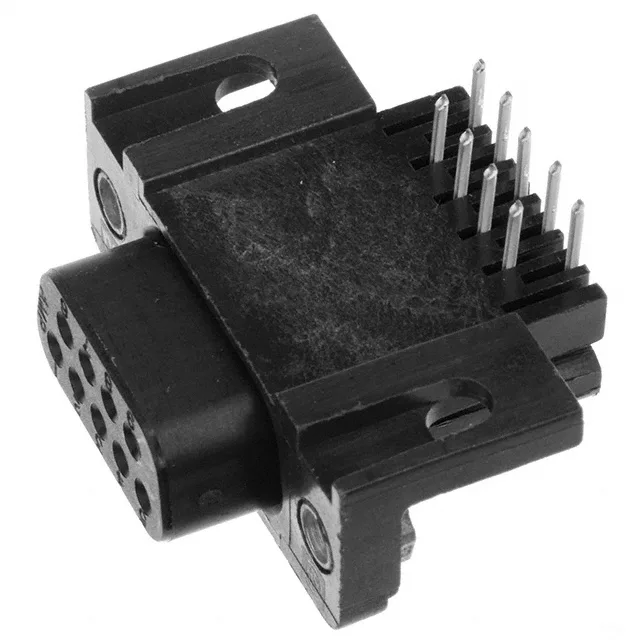

TE 5747459-4 AMPLIMITE HD-20 D-Sub, 9-Pos R/A Receptacle

MPN5747459-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747459-4, 9 positions, 2 rows, right-angle through-hole solder, gold-plated phosphor bronze contacts, 6A, 125V, UL94 V-0, tray.

$9.3800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5747459-4 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5747459-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray

All specifications

5747459-4 additional specifications
ParameterValue
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.590\" (14.99mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

D-Sub Receptacle for Serial and Industrial Ports

The 9 circuits and 2-row arrangement match the standard DE-9E footprint — the most common size for RS-232 serial ports, industrial machine interfaces, and instrumentation panels.

Mounting and Termination Details for Board Layout

Right-angle orientation with a 0.590" (14.99mm) backset spacing — the distance from the PCB mounting face to the rear of the shell. This backset tells the board layout engineer how much clearance the connector body needs beyond the edge of the board.

Current, Voltage, and Environmental Ratings

These ratings suit the connector for industrial cabinet, test equipment, and outdoor telecom applications where the ambient temperature can swing.

Frequently asked questions

Is 5747459-4 a right-angle connector?

Yes, the 5747459-4 is a right-angle through-hole receptacle, with a 0.590" (14.99mm) backset spacing from the PCB mounting face to the rear of the shell.
