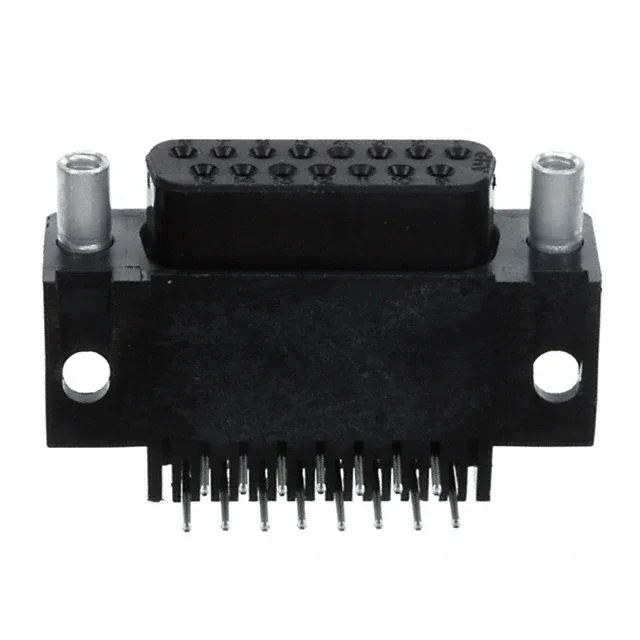

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747460-5, 15 positions, 2 rows, right-angle through-hole solder, gold flash contacts, 6 A, 125 V, UL94 V-0, female screwlock 4-40.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Gender | Signal |
| Mounting type | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.590\" (14.99mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
The backset spacing of 0.590" (14.99 mm) sets the distance from the PCB mounting surface to the front of the connector; this dimension matters when the board edge sits behind a panel cutout.
The 5747460-5 is a D-sub receptacle (female sockets) that mates with a standard D-sub plug (male pins) in the same DA shell size — 15 positions, 2 rows. The mating half will have a male screwlock (4-40) to engage the female screwlock on this receptacle.
Yes, the 5747460-5 is RoHS compliant as confirmed in the lifecycle record.
