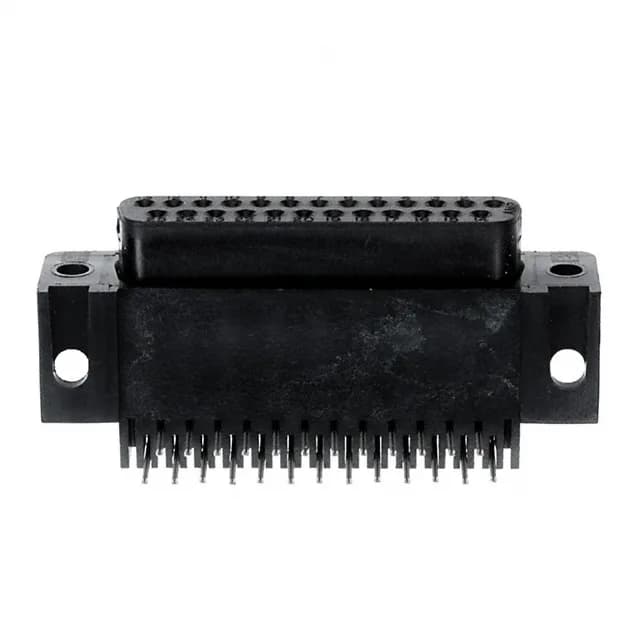

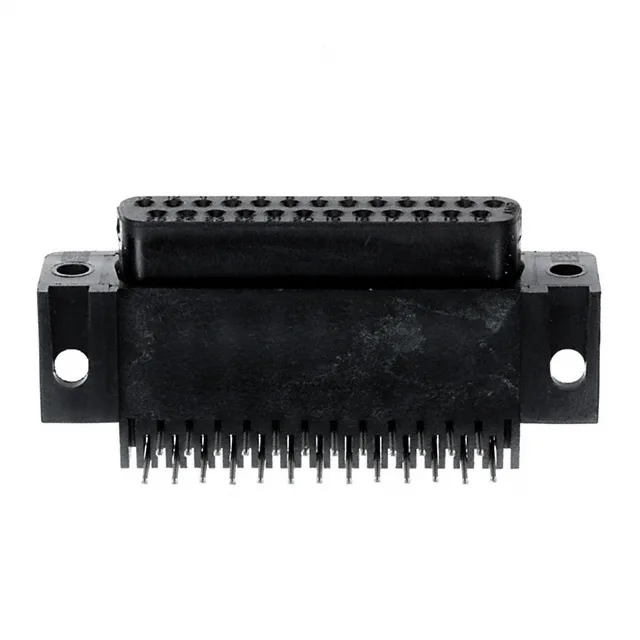

5747461-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HD-20 5747461-1 D-Sub Receptacle, 25-Pos R/A

MPN5747461-1
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, right-angle through-hole solder termination, gold flash contacts, 6A, 125V, UL94 V-0, shell size DB-25.

$10.2300Ref. price · indicative, final on quote
5747461-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5747461-1 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.590\" (14.99mm)
Positions25
Contact finish thicknessFlash

Product details

DB-25 Receptacle for Panel-Mount I/O

The TE Connectivity AMPLIMITE HD-20 5747461-1 is a 25-position D-Sub receptacle with female sockets, shell size 3 (DB, B) — the standard DB-25 layout. It is the mating half for any male DB-25 plug used in serial, parallel, or industrial I/O cabling. Right-angle through-hole termination lets it mount flush to the PCB edge, saving vertical clearance inside a 1U or 2U enclosure. The gold flash on phosphor bronze contacts provides corrosion resistance for moderate mating cycles — think rack-mounted equipment that gets connected a few times during installation and then stays mated. The unthreaded flange means you supply your own hardware or use a slide-lock assembly for vibration-resistant mating. Backset spacing is 0.590" (14.99 mm) — confirm the panel cutout depth before specifying the enclosure.

Frequently asked questions

What is an equivalent to 5747461-1?

The 3-1393480-8 and 8-1437045-3 are functionally equivalent siblings in the same AMPLIMITE HD-20 series — same 25-position DB-25 layout, same right-angle through-hole termination, same 6 A rating. The only difference is packaging (box or bulk vs tray).
