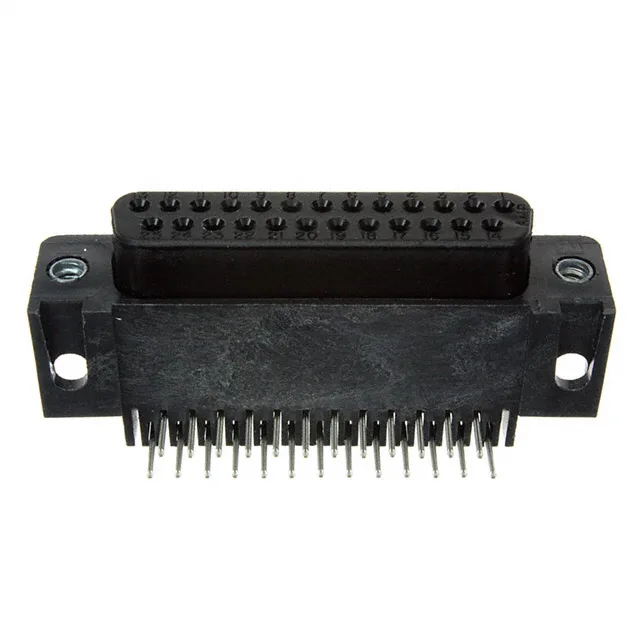

TE Connectivity 5747461-3, AMPLIMITE HD-20 D-Sub Receptacle

MPN5747461-3
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747461-3, 25 positions, 2 rows, right-angle through-hole solder, gold-plated phosphor bronze contacts, 6A, 125V, UL94 V-0.

$11.4800Ref. price · indicative, final on quote
5747461-3 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5747461-3 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.590\" (14.99mm)
Positions25
Contact finish thicknessFlash

Product details

Right-Angle DB-25 Receptacle for Board-Edge I/O

The 2-row DB-25 shell layout (size 3) matches the standard footprint for serial, parallel, and industrial I/O interfaces.

6A Per Contact — Signal-Grade Current, Not a Power Rail

Rated 6A per contact at 125V, this receptacle is sized for signal and low-power I/O circuits — think RS-232, parallel data, or control lines — not a bus bar.

Mounting and Hardware: 4-40 Screw Locks

The housing includes a 4-40 threaded flange for screw-lock mating with the corresponding DB-25 plug. Right-angle through-hole termination gives a mechanically robust joint that handles repeated cable strain better than an SMT part. The black UL94 V-0 shell is standard for the HD-20 series.

No end-of-life notice or last-time-buy has been issued.

Frequently asked questions

Is the 5747461-3 RoHS compliant?

Yes, the 5747461-3 is listed as RoHS Compliant.

What is the mating connector for 5747461-3?

The 5747461-3 mates with a standard DB-25 D-Sub plug (male) of the same AMPLIMITE HD-20 series, using the 4-40 threaded flange for screw-lock retention.
