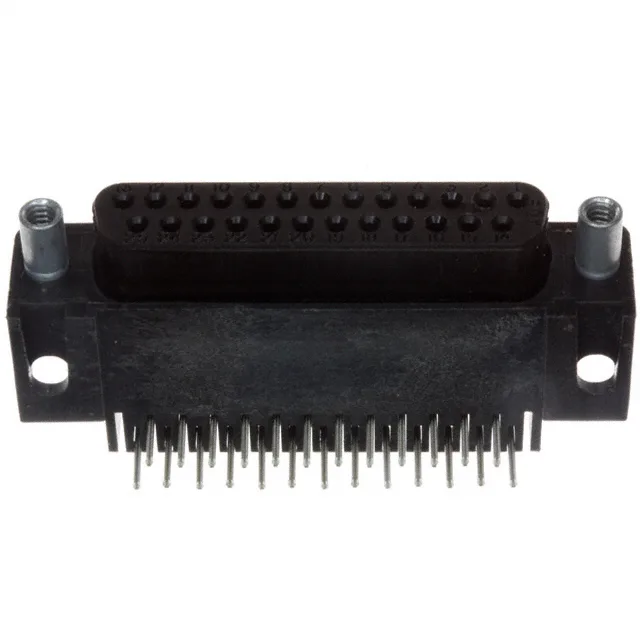

TE AMPLIMITE HD-20 5747461-5, 25-Pos D-Sub Receptacle, 6A

MPN5747461-5
Active

TE Connectivity AMPLIMITE HD-20 D-sub receptacle, 5747461-5, 25 positions, 2 rows, DB-25 shell, right-angle through-hole solder, gold flash contacts, 6A, 125V, UL94 V-0.

$14.8600Ref. price · indicative, final on quote
5747461-5 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5747461-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.590\" (14.99mm)
Positions25
Contact finish thicknessFlash

Product details

The TE Connectivity 5747461-5 is a 25-position D-sub receptacle from the AMPLIMITE HD-20 series, arranged in a standard DB-25 shell layout with two rows of contacts. The mating side carries female screwlocks (4-40 thread) — the matching cable plug needs male 4-40 hardware or a separate lock-nut set to secure the pair.

Ratings That Drive the Fit

Rated 6A per contact at 125V, the HD-20 contact system is sized for signal and moderate power — think I/O lines, serial interfaces, or low-current control circuits. The 0.590" (14.99 mm) backset spacing positions the PCB edge relative to the panel cutout; check your enclosure clearance before committing the footprint.

Frequently asked questions

What is the pin arrangement for 5747461-5?

It uses the standard DB-25 pin arrangement: 25 positions in two rows, with the shell layout designated as 3 (DB, B) per the connector layout specification.
