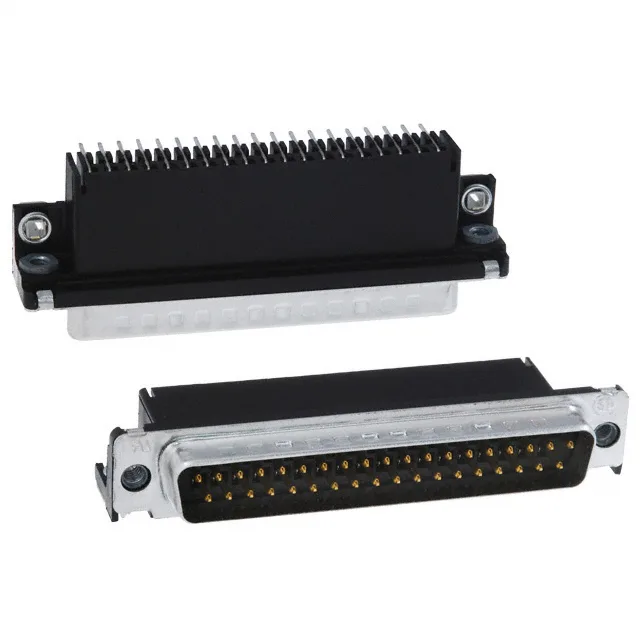

37-Position Right-Angle D-Sub Plug with Board Lock and Grounding
The TE Connectivity AMPLIMITE HD-20 5747835-4 is a 37-position D-sub plug with male pins, arranged in two rows on the standard DC (C) shell size. It terminates via through-hole solder tails and exits the board at a right angle, with a backset spacing of 0.590" (14.99 mm) that sets the board-edge clearance for the mating receptacle. This is the full-size 37-position member of the HD-20 series, built for signal interconnect in equipment that needs a shielded, threaded-lock D-sub interface.
Board Lock, Ground Strap, and 4-40 Threaded Insert
This plug carries a board lock, a ground strap, and grounding indents on the shell. The flange uses a standard 4-40 threaded insert (housing/shell side) for jack-screw mating with the receptacle — the same thread as every other standard-density D-sub, so hoods and backshells with 4-40 screws fit directly.
Backset Spacing: 0.590" vs the 0.318" Sibling
