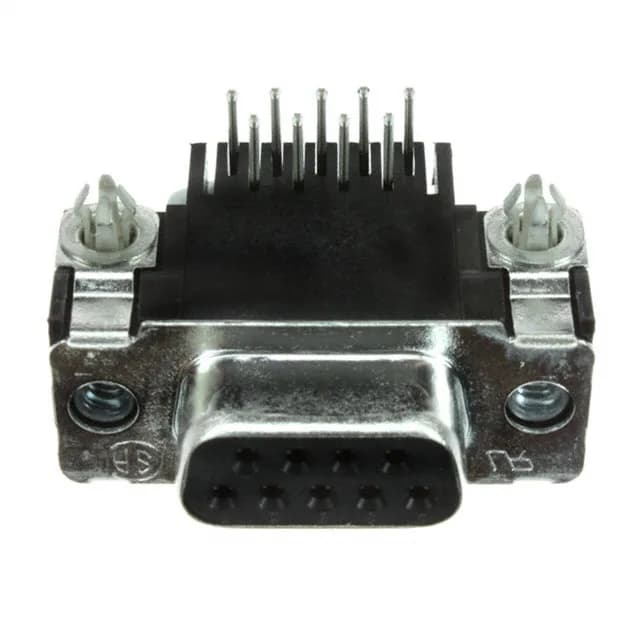

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle through-hole solder, gold-plated contacts, 6A, 125V, board lock and ground strap, black shell.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Lock, Ground Strap |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.590\" (14.99mm) |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
This receptacle mates with a standard D-sub plug matching shell size DE, E — the 9-position pattern fits the panel cutout for that layout. The flange uses 4-40 threaded inserts for jackscrew or screw-lock retention.
This 9-position D-sub receptacle mates with a standard DE-9 (E size) D-sub plug. The flange uses 4-40 threaded inserts for jackscrew or screw-lock retention.
