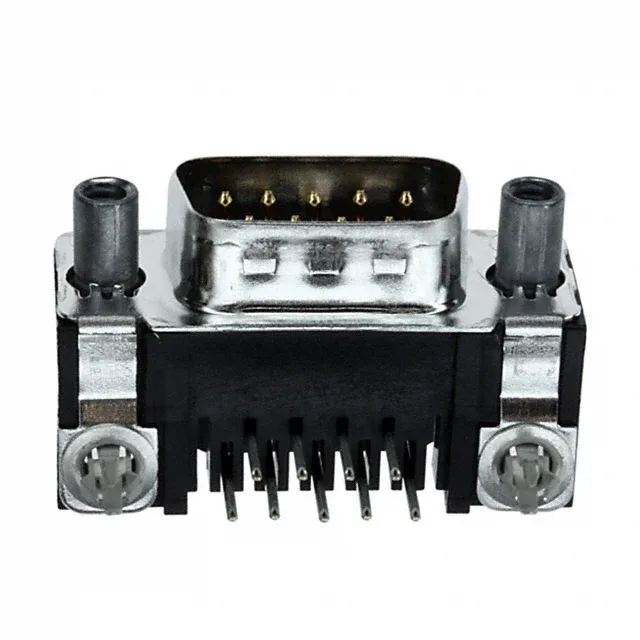

TE 5747840-6 AMPLIMITE HD-20 D-Sub Plug, 9 Pos, Right Angle

MPN5747840-6
Active

TE Connectivity AMPLIMITE HD-20, D-Sub Plug, 9 Positions, 2 Rows, Right Angle, Through Hole, Solder, Gold, 6A, 125V, Board Lock, Ground Strap, UL94 V-0.

$4.7600Ref. price · indicative, final on quote
5747840-6 datasheet
StockIn Stock (48)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5747840-6 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9

Product details

It carries gold-plated brass signal contacts rated 6 A per circuit at 125 V, with a shell size 1 (DE, E) layout matching the standard DE-9 pinout used for RS-232 serial ports, industrial fieldbus interfaces, and instrumentation cabling.
