5747843-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HD-20 5747843-6, 37-Pos D-Sub Plug, 6A

MPN5747843-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub, Plug, Male Pins, 37 Positions, 2 Rows, Right Angle, Through Hole, Solder, Gold Contacts, 6A, 125V, Shell Size 4 (DC, C), Board Lock, Grounding Indents.

$11.9100Ref. price · indicative, final on quote
5747843-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5747843-6 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions37

Product details

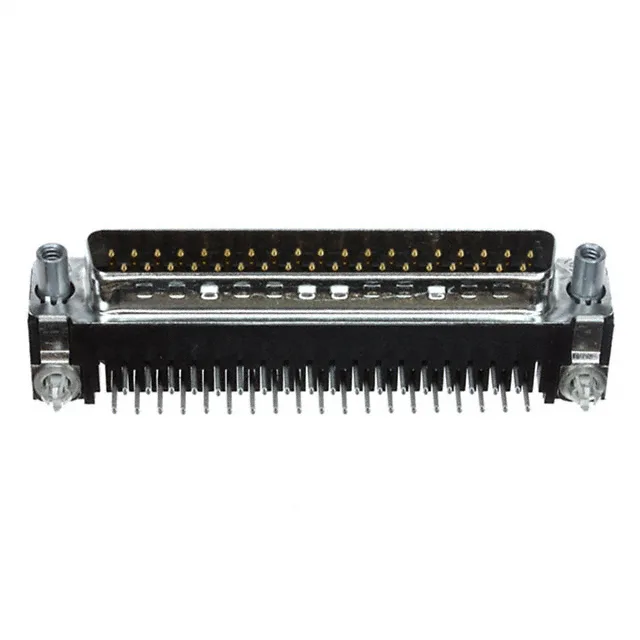

37-Position Right-Angle D-Sub Plug with Board Lock

The TE Connectivity AMPLIMITE HD-20 5747843-6 is a 37-position D-sub plug with male pins arranged in two rows, terminated through-hole and soldered to the PCB at a right angle. The shell layout is 4 (DC, C), the standard footprint for 37-position D-subs.

The flange carries female screwlocks (4-40) on the mating side, so the mating half needs male screwlocks or a locking post to secure the pair. Termination is solder cup to the PCB — no crimp or IDC option on this variant.

Frequently asked questions

Where can I buy TE 5747843-6?

Submit a quote request for current pricing and availability.

Does 5747843-6 include screwlocks?

Yes, the 5747843-6 includes female screwlocks (4-40) on the mating side of the flange. The mating receptacle must have male screwlocks or a locking post to secure the pair.

What is the current rating of TE AMPLIMITE HD-20 connectors?

The 5747843-6 is rated 6 A per contact at 125 V. This is typical for signal-level D-sub contacts; derate above 105°C per the manufacturer's derating curve.
