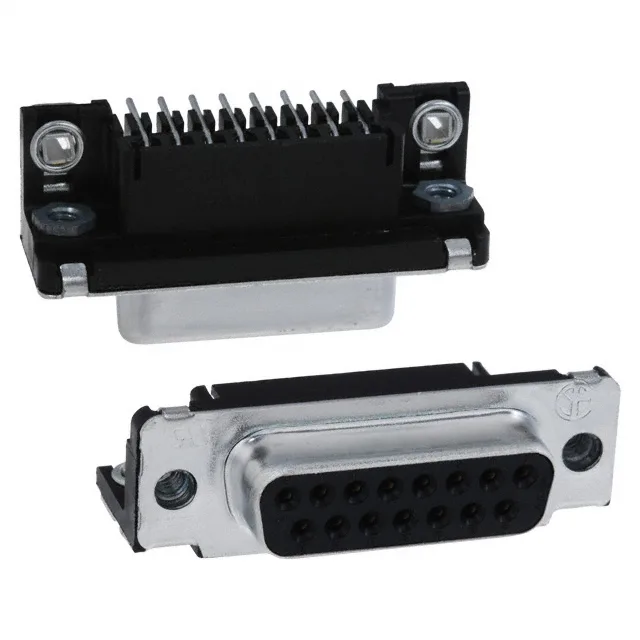

TE AMPLIMITE HD-20 5747845-3, 15-Pin D-Sub Receptacle, 6A

MPN 5747845-3
Active

TE Connectivity AMPLIMITE HD-20 D-sub receptacle, 5747845-3, 15 positions, 2 rows, right-angle solder, through-hole, 6A, 125V, gold flash contacts, board lock, ground strap, black thermoplastic shell.

$6.2600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5747845-3 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5747845-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions15
Contact finish thicknessFlash

Product details

Board-edge D-sub for signal I/O panels

The TE Connectivity AMPLIMITE HD-20 5747845-3 is a 15-position D-sub receptacle in the standard DA shell size (layout 2). It terminates signal contacts — rated 6A per circuit at 125V — through right-angle solder tails for board-edge mounting.

Sizing the contact duty for your BOM

At 6A per contact, this is a signal-level D-sub — the 15-position count and 0.318-inch backset spacing keep the current per circuit below what a power-density D-sub would carry.
