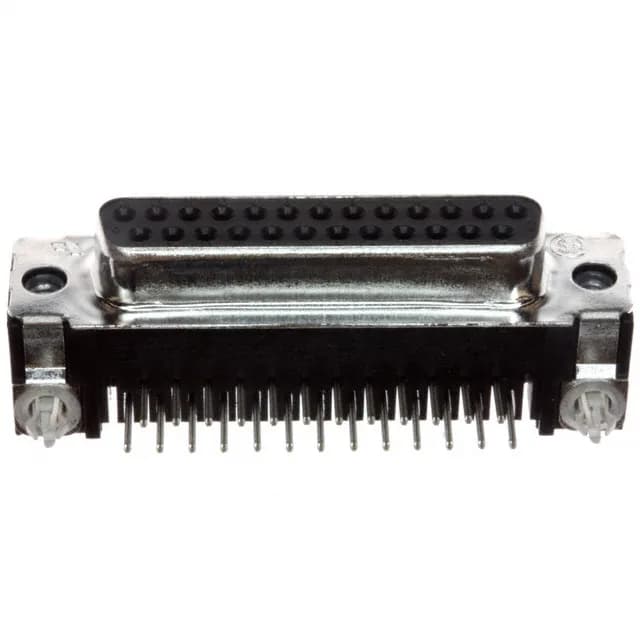

TE Connectivity 5747846-3 AMPLIMITE HD-20 D-Sub, 25 Pos

MPN5747846-3
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747846-3, 25 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, 6 A, 125 V, shell size 3 (DB, B), board lock, UL94 V-0.

$7.5300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5747846-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5747846-3 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5747846-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thicknessFlash

Product details

Right-Angle D-Sub for Board-Edge I/O

The TE Connectivity AMPLIMITE HD-20 5747846-3 is a 25-position D-Sub receptacle with female sockets, arranged in two rows. The shell size is 3 (DB, B), the standard layout for a 25-pin D-Sub.

Board Lock and Ground Strap for Mechanical and EMI Duty

This receptacle includes a board lock and a ground strap. The ground strap provides a low-impedance path from the connector shell to the PCB ground plane, which helps bleed shield currents before they reach the signal pins — a practical detail for enclosures where the D-Sub shell is the chassis ground entry point.
