TE Connectivity AMP Connectors 5747846-5 — D-Sub Cable Assemblies

TE AMPLIMITE HD-20 5747846-5, DB-25 Receptacle, 6A

MPN5747846-5
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5747846-5, 25 positions, 2 rows, 6A, 125V, right-angle through-hole solder, gold flash contacts, board lock and ground strap.

$6.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5747846-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5747846-5 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5747846-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thicknessFlash

Product details

What this 25-position DB-25 right-angle receptacle does

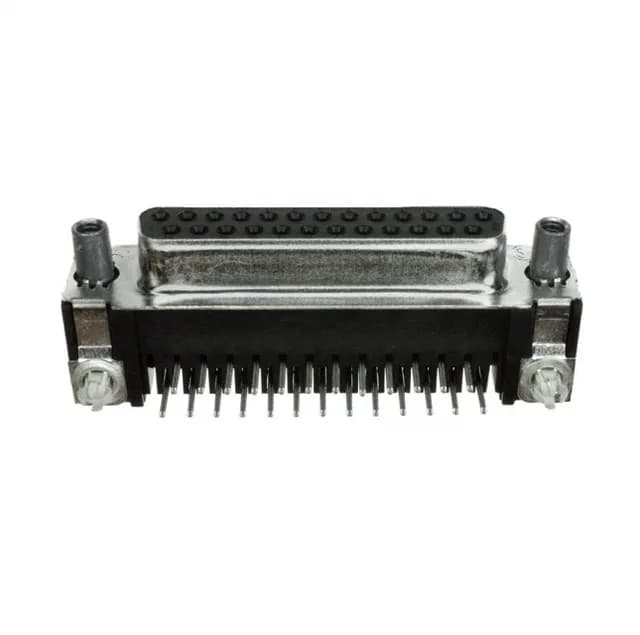

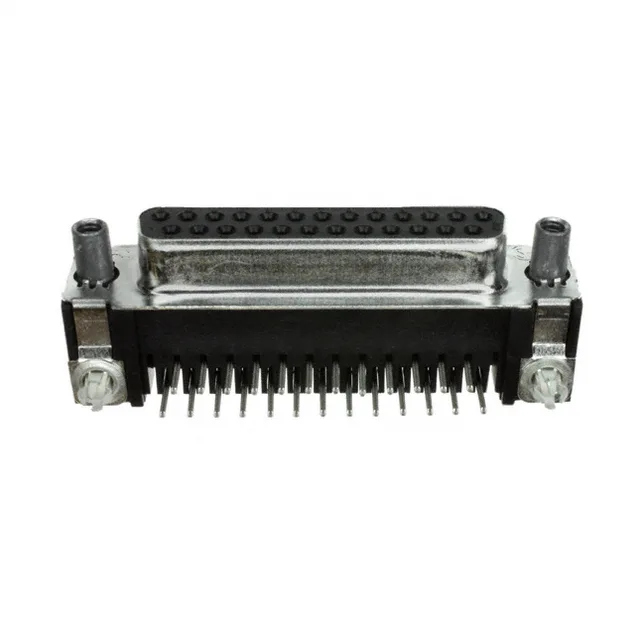

The TE Connectivity AMPLIMITE HD-20 5747846-5 is a 25-position D-Sub receptacle in the standard DB-25 shell layout. The mating side carries a female 4-40 screwlock, so the plug half locks in with standard D-Sub jack-screws.

Each contact carries about what a typical RS-232 or GPIO line draws, not bus-level power.

Board lock and ground strap — why they matter here

On a right-angle mount, the 0.318" backset spacing sets the distance from the PCB edge to the panel face, so check that dimension against your enclosure cutout clearance before routing the board.
