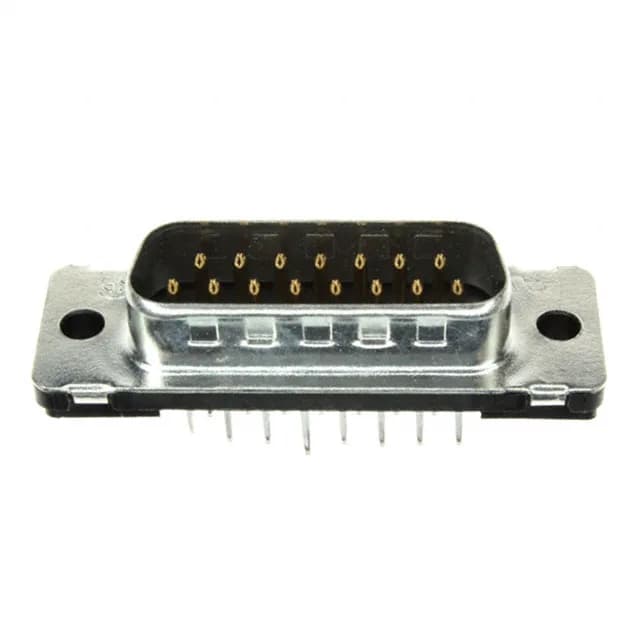

5747872-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5747872-4 AMPLIMITE HD-20 D-Sub Plug, 15-Pin

MPN5747872-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 5747872-4, 15 positions, 2 rows, vertical through-hole solder termination, gold-plated brass contacts, rated 6A at 125V, steel shell with tin plating and grounding indents.

$5.8400Ref. price · indicative, final on quote
5747872-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5747872-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Connector styleD-Sub
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Number of rows2
Positions15

Product details

15-Position D-Sub Plug, Vertical Solder — AMPLIMITE HD-20

It mounts vertically through-hole with solder termination — a standard DB-15 footprint for board-edge I/O. The shell size is DA (2, A) layout, dual-row. This is the male plug half — mates with a standard DB-15 female receptacle (solder cup or PCB mount) with unthreaded housing flanges for slide-lock or screw-lock hardware.

6 A per Contact — Signal or Light Power Duty

That rating handles RS-232/422, parallel printer data, or low-current actuator lines without derating at room temperature. The 15-pin count matches a DB-15 shell — 8 on top row, 7 on bottom. The grounding indents on the shell mate with the receptacle's shell to shunt EMI before it couples onto the pins — useful in industrial cabinet or test-equipment environments where cable shielding is bonded at the connector face.

Frequently asked questions

What is the pinout of 5747872-4?

Design engineers need to verify signal mapping for their PCB layout.

What is the price of 5747872-4?

Sourcing buyers need to compare cost for BOM budgeting.

Where can I buy 5747872-4 in stock?

Buyers need immediate availability to avoid production delays.

What is the mating connector for 5747872-4?

Engineers and techs need the correct female D-sub to ensure proper connection.

Is 5747872-4 obsolete or still active?

Brokers and buyers need lifecycle status to secure supply chain continuity.

What are the dimensions of 5747872-4?

Design engineers need physical footprint for board layout and enclosure fit.
