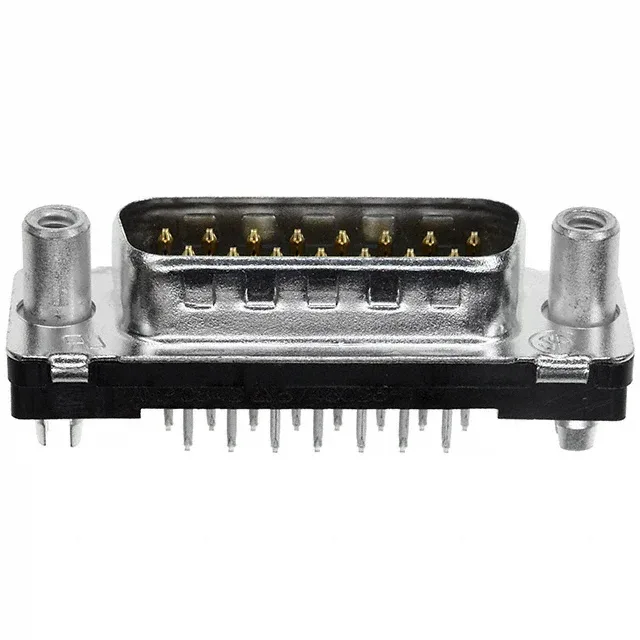

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 15 positions, 2 rows, 6A, 125V, through hole, solder termination, gold flash contacts, board lock, grounding indents, black polyester shell, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyester |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | Flash |
The 5748026-1: The mating-side female screwlock (4-40) is the standard D-Sub jack-screw interface for panel-mount retention.
At 6A per contact, this plug is suited for signal-level circuits and moderate power loads — not bus-level current. The 125V rating confirms it for use in control cabinets, test equipment, and industrial I/O where the working voltage stays under that ceiling.
