TE Connectivity AMP Connectors 5748678-3

TE Connectivity 5748678-3, AMPLIMITE Backshell, 25 Pos, 180°

MPN 5748678-3
Active

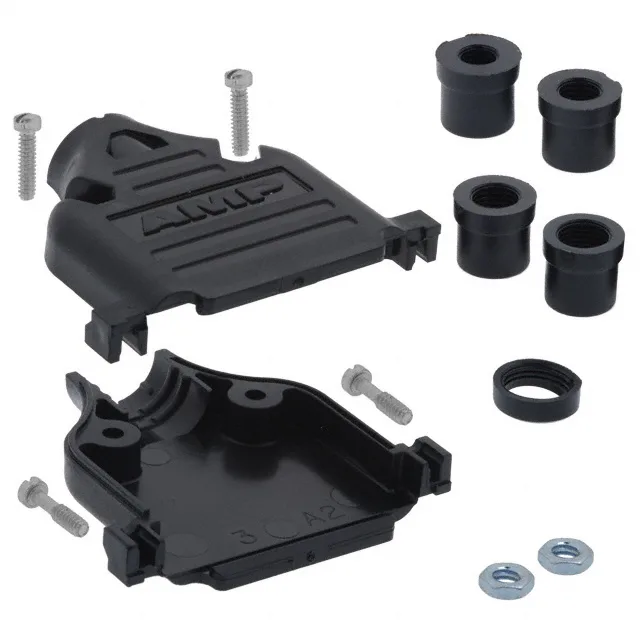

TE Connectivity AMPLIMITE series, two-piece backshell, 25 positions, 180° cable exit, black ABS plastic, includes 4-40 mating screws and assembly hardware, unshielded, bulk.

$5.7400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5748678-3 specifications
ParameterValue
SeriesAMPLIMITE
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit180°
ColorBlack
MaterialAcrylonitrile Butadiene Styrene (ABS)
Primary materialPlastic
PackageBulk
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Grommets
ShieldingUnshielded
Positions25
Compatible D-Sub size25pos and HD44pos
Compatible shell sizeB

Product details

Backshell for D-Sub 25 — What This Part Does

The TE Connectivity 5748678-3 is a two-piece backshell from the AMPLIMITE series, designed to fit standard 25-position D-Sub connectors as well as HD44 connectors. It provides strain relief and cable management for round cable assemblies with a 180° straight cable exit. The black ABS plastic housing includes assembly hardware and grommets, plus the 4-40 mating screws needed to secure it to the D-Sub connector. This is an unshielded backshell — for shielded cable runs, you would need a metal-shell variant from the same series.

Fitting the Backshell to Your D-Sub

The backshell is compatible with standard D-Sub 25-position connectors (DB-25 size) and also with high-density 44-position connectors that share the same shell size B. The included 4-40 mating screws are the standard thread for D-Sub backshell attachment; they thread into the D-Sub connector's screw-lock inserts. The assembly hardware and grommets are in the bag, so no separate fastener order is needed for a single unit.

The housing is molded from ABS (Acrylonitrile Butadiene Styrene), a standard thermoplastic for backshells that offers good impact resistance and dimensional stability. The part is ROHS3 compliant, which covers the full RoHS directive including phthalates — acceptable for equipment sold into EU markets. No UL or VDE rating is listed on this entry, so if your application requires a specific flame rating, check the full datasheet for the plastic grade.
