15-Position Right-Angle D-Sub Plug with Board Locks
The shell size is DA (A), the standard layout for 15-position D-subs, and the flange carries 4-40 threaded inserts for mating with the matching receptacle.

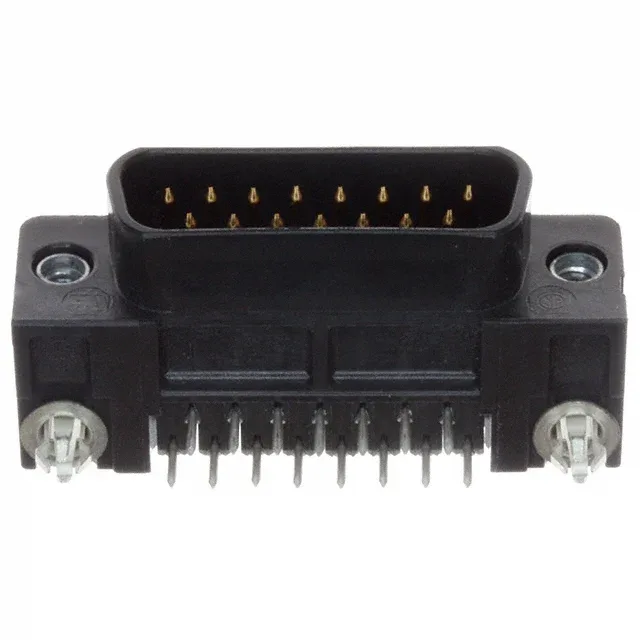

TE 5748904-1 AMPLIMITE HD-20 D-Sub Plug, 15-Pos, R/A
MPN5748904-1
Active
TE Connectivity AMPLIMITE HD-20 D-Sub, Plug, Male Pins, 15 Positions, 2 Rows, Right Angle Through Hole, Solder, 30.0µin Gold, Board Lock, UL94 V-0.
$14.3800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Gender | Signal |
| Mounting type | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Does 5748904-1 come with board locks?
Yes, the 5748904-1 includes board locks that anchor the connector to the PCB during soldering and resist vibration in service.
What is the mating connector for 5748904-1?
The 5748904-1 mates with a standard 15-position D-sub receptacle (female) having a DA (A) shell size and 4-40 threaded inserts. The mating half is typically a solder-cup or right-angle PCB-mount receptacle from the AMPLIMITE HD-20 series.
