TE Connectivity 5749014-1 AMPLIMITE HDP-20 D-Sub Plug, 9 Pos

MPN5749014-1
Active

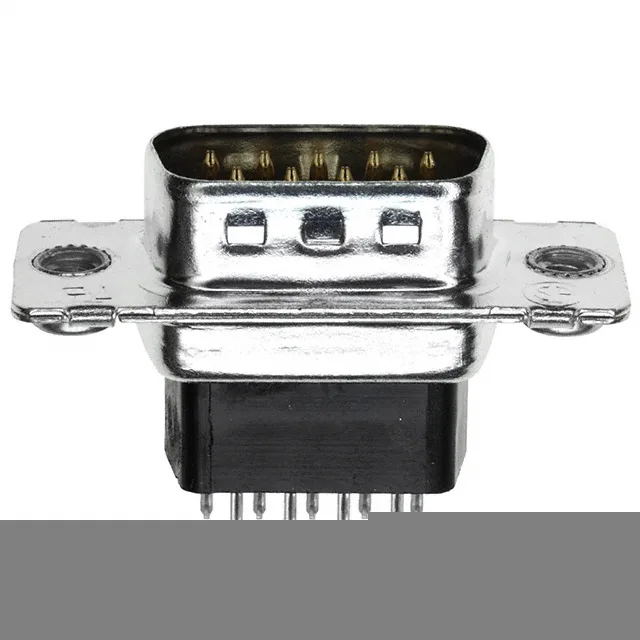

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 5749014-1, 9 positions, 2 rows, male pins, solder termination, gold contacts, 6A, 125V, through hole, black, UL94 V-0.

$11.6300Ref. price · indicative, final on quote
5749014-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5749014-1 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDP-20
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions9

Product details

The TE Connectivity 5749014-1 is a 9-position D-sub plug from the AMPLIMITE HDP-20 series, fitted with male pins and a solder termination for through-hole mounting. It's the standard DB-9 density layout — the shell size is 1 (DE, E) — so it mates with any matching DE-9 receptacle housing. The black UL94 V-0 rated thermoplastic shell carries grounding indents on the steel shell to bleed shield current before it reaches the signal pins, which cuts down on EMI coupling in noisy environments like industrial control cabinets or test equipment racks.

Rated 6 A per contact at 125 V — that's typical for signal-grade D-subs, not for power distribution.

Frequently asked questions

Where can I buy 5749014-1 and how do I get a price?

The 5749014-1 is sourced to order through independent distribution.

What is the mating connector for 5749014-1?

This plug mates with any standard DE-9 D-sub receptacle housing from the AMPLIMITE HDP-20 series, using the board-side 4-40 threaded inserts for jack-screw retention.
