TE Connectivity 5749069-1 AMPLIMITE .050 III D-Sub

MPN 5749069-1
Active

TE Connectivity AMPLIMITE.050 III D-sub receptacle, 20 positions, 2 rows, 0.050 pitch x 0.100 row spacing, 1 A, 30 V, through-hole solder, gold-plated phosphor bronze contacts, shielded steel shell, black thermoplastic housing, UL94 V-0.

$8.9900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE .050 III
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5749069-1 key specifications
ParameterValue
SeriesAMPLIMITE .050 III
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated

All specifications

5749069-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesShielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (2-56); Latchblocks, Rails
Rows2
Positions20

Product details

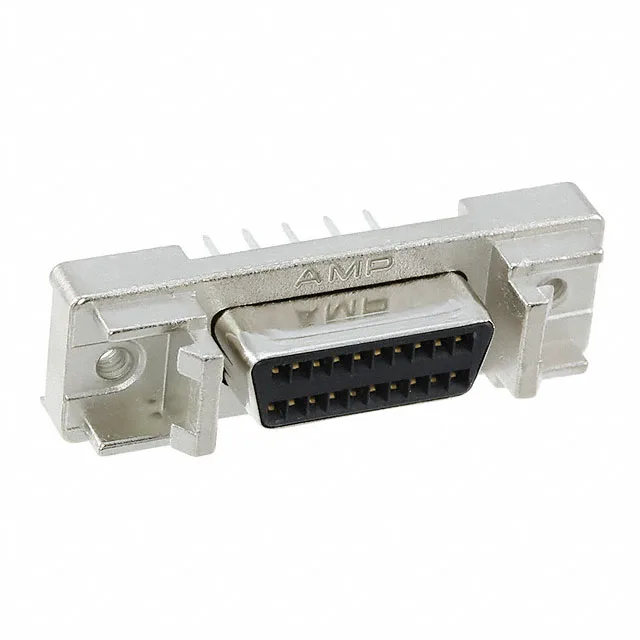

20-Position Shielded D-Sub Receptacle for Signal-Level Interconnects

It uses a 0.050 inch pitch with 0.100 inch row-to-row spacing — the standard footprint for this compact D-subminiature layout, so the PCB pattern matches the mating plug without guesswork. The gold-plated phosphor bronze contacts handle repeated mating cycles and resist corrosion in field-service environments, while the steel shell with nickel plating provides EMI/RFI shielding to protect low-voltage signals in noisy equipment enclosures. The through-hole solder termination and vertical orientation make it a straightforward board-mount part for standard wave-solder lines.

Shielded Shell and Latching Hardware

The shell includes integrated flange features with 2-56 threaded inserts and latchblock rails. The shielding is continuous through the shell-to-shell interface when mated.
