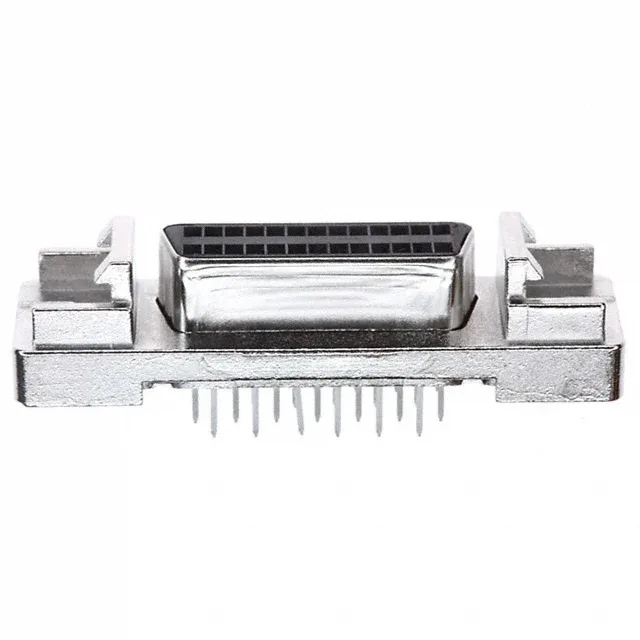

5749069-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5749069-2 AMPLIMITE .050 III D-Sub

MPN5749069-2
Active

TE Connectivity AMPLIMITE.050 III D-sub receptacle, 5749069-2, 26 positions, 2 rows, 0.050 inch pitch, 1 A, 30 V, through-hole solder, shielded, gold contacts.

$10.0600Ref. price · indicative, final on quote
5749069-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5749069-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageTube
FeaturesShielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (2-56); Latchblocks, Rails
Rows2
Positions26

Product details

The TE Connectivity 5749069-2 is a 26-position D-sub receptacle from the AMPLIMITE.050 III series, populated with female sockets arranged in two rows. It is a shielded, through-hole solder connector designed for vertical board mounting — the shell and latchblocks provide the mechanical anchor, not a threaded backshell.

The steel shell with nickel plating and the shielded construction mean this connector is intended for applications where radiated emissions or susceptibility is a concern — the shell continuity to the PCB ground plane is what actually makes the shield work.

Mating and Board Layout

This receptacle mates with the AMPLIMITE.050 III series plug (male pin) connector of the same 26-position count and 0.050 inch pitch. The flange features housing/shell threaded inserts (2-56) and latchblocks — the mating plug uses the same latchblock interface, so no separate hardware is needed for retention.

Frequently asked questions

Is the 5749069-2 a shielded connector?

Yes, the 5749069-2 is a shielded D-sub receptacle. The steel shell with nickel plating and the shielded construction provide EMI containment when the shell is connected to the PCB ground plane.

What is the pinout configuration of 5749069-2?

The 5749069-2 is a 26-position D-sub receptacle with female sockets arranged in two rows at a 0.050 inch pitch and 0.100 inch row-to-row spacing. The specific pin assignments depend on the application — the connector itself provides the physical layout, not a predefined signal map.
