Mini DIN Receptacle for Audio and Video Signal Interconnects

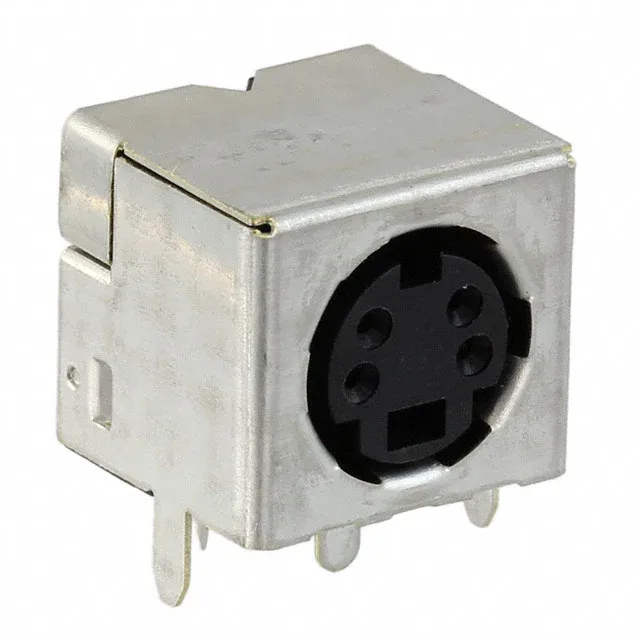

The 5749264-1: It sits in TE's Mini DIN connector family, identified by the Shell Size - Insert of Mini DIN, and mates with the corresponding Mini DIN plug.
Sizing the Signal Path: Current, Voltage, and Contact Finish
Board Layout Fit: Right-Angle Through-Hole and Shielding
This orientation is standard for back-panel I/O where the connector needs to be accessible from outside the enclosure. The shielded construction — noted in the spec as Shielded — helps contain EMI from the signal lines, which is why this connector is listed for Audio and Video applications where noise rejection is a design requirement.
Environmental and Regulatory Compliance
The connector is ROHS3 Compliant, confirming no restricted substances under current EU directives.
