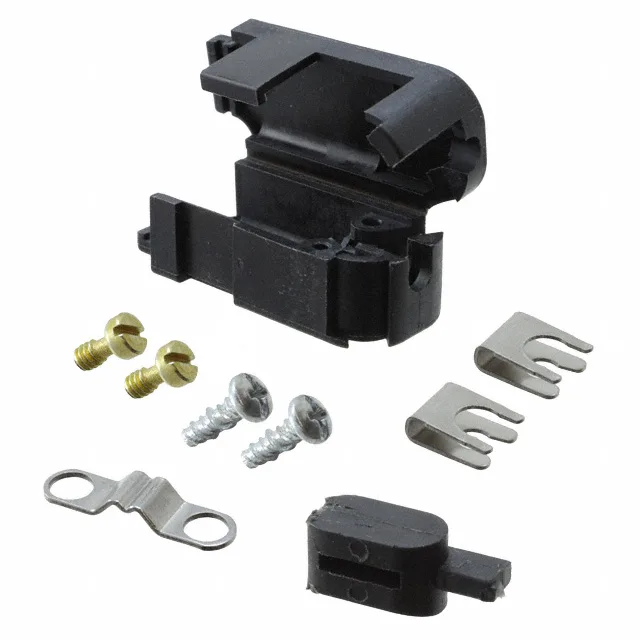

TE Connectivity 5749914-1 AMPLIMITE Quik-Snap Backshell, 9P

MPN5749914-1
Active

TE Connectivity AMPLIMITE Quik-Snap hinged backshell, 9 positions, Black polypropylene, 120°/180° cable exit, includes assembly hardware and strain relief, unshielded, Box package.

$8.0500Ref. price · indicative, final on quote
5749914-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5749914-1 Technical Specifications
ParameterValue
SeriesAMPLIMITE Quik-Snap
Cable typeRound
Accessory typeHinged Backshell
Cable exit120°, 180°
ColorBlack
MaterialPolypropylene (PP)
Primary materialPlastic
PackageBox
HardwareAssembly Hardware, Strain Relief
ShieldingUnshielded
Positions9
Compatible D-Sub size9pos and HD15pos
Compatible shell sizeE

Product details

Hinged Backshell for Standard D-Sub Cable Assemblies

The TE Connectivity 5749914-1 is a hinged backshell from the AMPLIMITE Quik-Snap series, designed to terminate and protect the cable end of a standard 9-position D-Sub connector. It accepts round cable and provides two cable exit options — 120° and 180° — giving the harness builder flexibility in routing the cable away from the connector along the panel or enclosure wall. The black polypropylene (PP) housing is lightweight and resists common industrial fluids and solvents, making it a practical choice for control cabinets, instrumentation, and serial communication links where a plastic, unshielded backshell is sufficient.

Cable Exit and Routing Flexibility

The dual cable exit orientation is the primary selection feature of this backshell. The 120° exit angles the cable away from the connector axis at an oblique angle, useful when the cable must clear adjacent connectors or components on a crowded panel. The 180° straight exit keeps the cable aligned with the connector axis for a direct run. Both exits are built into the same hinged body — the assembler chooses the orientation during installation by snapping the cover closed over the cable in the desired position. This eliminates the need to stock separate 120° and 180° backshell variants.

Compatibility and Included Hardware

This backshell is compatible with standard D-Sub connectors having shell size E, which covers the 9-position standard-density layout.

Frequently asked questions

Is 5749914-1 compatible with standard DB9 connectors?

Yes, the 5749914-1 is compatible with standard 9-position D-Sub connectors (DB9) that use shell size E. It also fits high-density 15-position (HD15) connectors with the same shell size.

What is the cable exit orientation of 5749914-1?

The 5749914-1 offers both 120° and 180° cable exit orientations in a single hinged backshell body. The assembler selects the desired exit angle during installation.

Does 5749914-1 include assembly hardware?

Yes, the 5749914-1 includes assembly hardware and a strain relief as part of the backshell package. No separate jack-screw kit or cable clamp is required.
