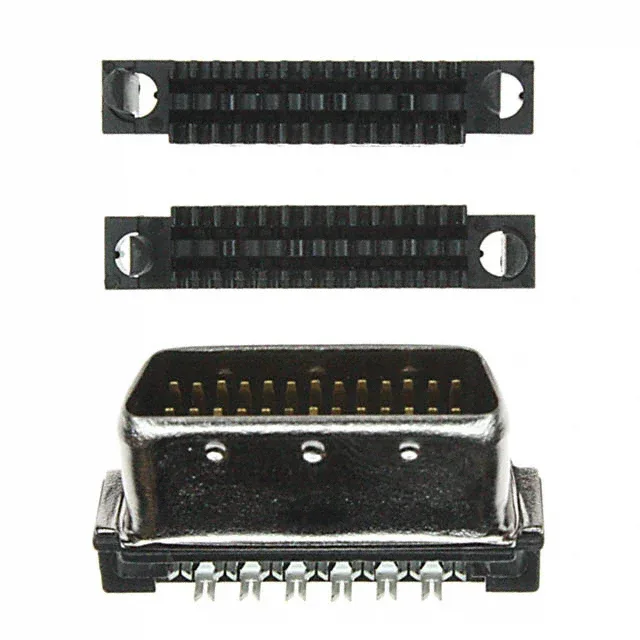

5750913-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5750913-2 AMPLIMITE .050 III D-sub Plug

MPN5750913-2
Active

TE Connectivity AMPLIMITE.050 III, D-sub plug, 26 positions, 2 rows, 0.050 inch pitch, IDC termination, gold-plated phosphor bronze contacts, 1 A, 30 V, shielded with terminating cover, UL94 V-0.

$14.8700Ref. price · indicative, final on quote
5750913-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5750913-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesShielded, Terminating Cover
TerminationIDC, Discrete Wire
Contact finishGold
Rows2
Positions26

Product details

26-Position Shielded D-Sub Plug for Discrete-Wire IDC Harnesses

The TE Connectivity 5750913-2 is a 26-position D-type plug from the AMPLIMITE.050 III series, designed for IDC termination of discrete wires. The 0.050 inch pitch and 0.100 inch row-to-row spacing are tighter than a standard-density DB shell — this is a compact D-sub for signal-density harnesses, not a traditional RS-232 connector. Gold-plated phosphor bronze contacts rated 1 A per circuit at 30 V confirm signal-level duty, and the shielded shell with terminating cover clamps the cable braid directly to the steel, tin-nickel plated body for EMI containment.

IDC Termination and Shielding — What the Build Requires

No crimp tool or separate terminal is needed. The terminating cover clamps over the cable jacket and braid, grounding the shield to the shell. The free-hanging mount means no panel cutout is required. The 26 positions in two rows follow the standard D-sub pinout for this shell size.

Active Production — No End-of-Life Watch

No last-time-buy notice or phase-out date is on record for this AMPLIMITE.050 III member. The RoHS compliance is confirmed.

Frequently asked questions

Where can I buy the 5750913-2 with stock in the US?

Submit an RFQ for your target quantity and delivery window.

Does the 5750913-2 require a shielded cable?

The terminating cover is designed to clamp the cable braid to the shielded shell, so the connector is built for shielded cable. If the harness uses unshielded wire, the cover still provides strain relief but the EMI benefit is lost. The connector functions without the braid connection, but the shield path is open.
