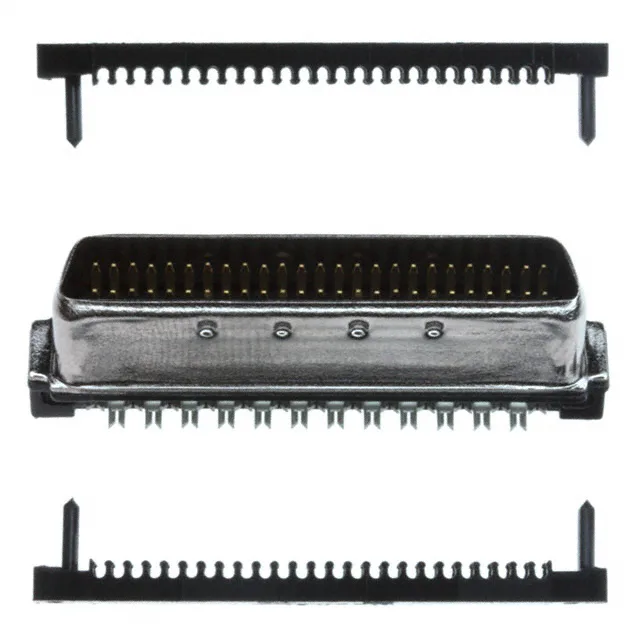

5750913-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5750913-5 AMPLIMITE .050 III, 50-Pos D-Sub Plug, IDC

MPN5750913-5
Active

TE Connectivity AMPLIMITE.050 III, D-Sub Plug, 50 Positions, 2 Rows, 0.050 Pitch x 0.100 Row Spacing, IDC Termination, Shielded, 1A, 30V, Black, UL94 V-0.

$11.1400Ref. price · indicative, final on quote
5750913-5 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5750913-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesShielded, Terminating Cover
TerminationIDC, Discrete Wire
Contact finishGold
Rows2
Positions50

Product details

50-Position Shielded D-Sub Plug with IDC Termination

It uses a 0.050 inch pitch with 0.100 inch row-to-row spacing, giving it a compact footprint for high-density signal interconnects in shielded harness assemblies. The steel shell with tin-nickel plating, combined with the terminating cover, provides EMI shielding for the cable assembly.

IDC Termination and Shielding

Termination is IDC (insulation displacement) for discrete wire — no crimp tool or contact insertion step needed. The terminating cover presses the wires into the slot contacts and acts as a strain-relief backshell. This makes the 5750913-5 a field-terminable option for shielded D-sub cable assemblies where soldering or crimping is impractical. The free-hanging (in-line) mount suits it for cable-to-panel or cable-to-cable connections where the plug is the moving half. Mates with the matching AMPLIMITE.050 III receptacle (sold separately).

Frequently asked questions

Where can I buy the TE 5750913-5 and how do I get a price?

The 5750913-5 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

What is the pitch of the AMPLIMITE.050 III series?

The AMPLIMITE.050 III series uses a 0.050 inch contact pitch with 0.100 inch row-to-row spacing, as listed in the connector layout specification.
