Board Layout Fit: 0.025" Pitch and Stack Height

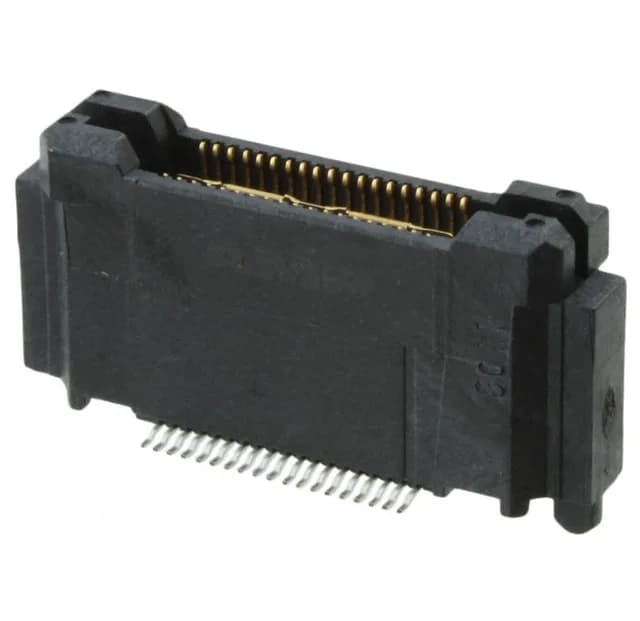

The TE Connectivity 5767005-8 is a 38-position plug from the MICTOR series, designed for high-density board-to-board mezzanine interconnects. Its 0.025" (0.64mm) pitch on two rows demands a tight board layout — the footprint requires precise trace routing between pads, typical for differential-pair or high-speed signal paths. The connector stands 0.484" (12.29mm) above the board and supports mated stacking heights of 12.57mm and 21.6mm, giving the mechanical designer two z-height options depending on the mating receptacle chosen.
