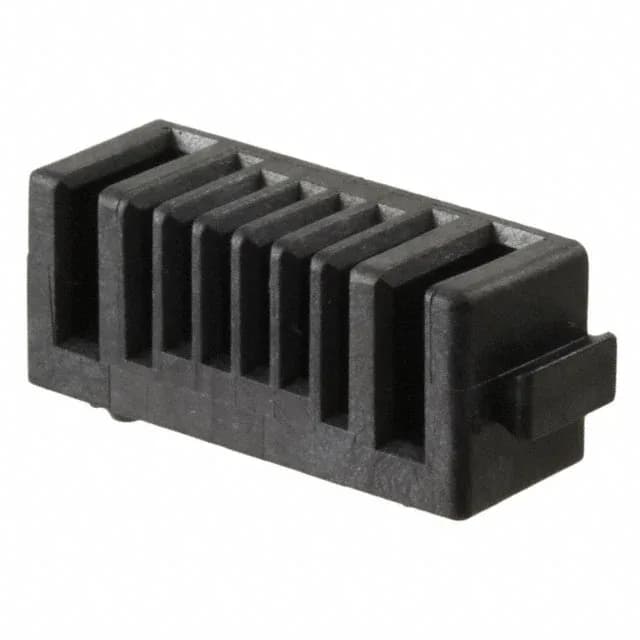

2.00 mm Pitch, 6-Position MDI Receptacle for Board-Mount Signal/Power
It accepts female blade sockets and uses a push-pull fastening mechanism — no locking latch, so it's best suited for internal board-to-wire connections where accidental unmating is prevented by the enclosure or cable routing. The black LCP housing carries a board guide feature to help align the connector during assembly.
At 7 A per circuit, the total current across all six positions depends on PCB trace widths and thermal management.
Gold Plating at 3.00 µin — Moderate Cycle Life
If the application requires repeated connect/disconnect in dusty or corrosive conditions, a thicker gold or selective plating would be more appropriate. For a one-time assembly or occasional rework, this plating grade is adequate.
