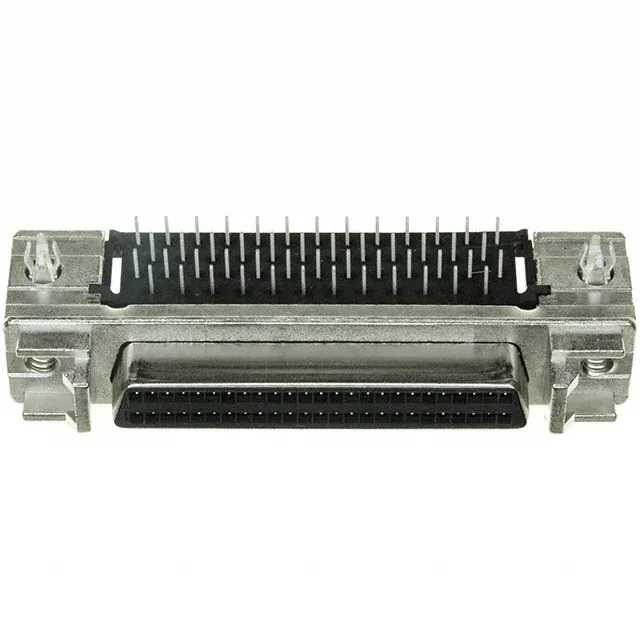

5787266-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5787266-5 AMPLIMITE .050 III 50-Pos D-Sub Receptacle, R/A

MPN5787266-5
Active

TE AMPLIMITE.050 III D-sub receptacle, 50 positions, 2 rows, 1 A, 30 V, right-angle board-edge mount, solder termination, gold-plated contacts, shielded with board locks.

$12.7700Ref. price · indicative, final on quote
5787266-5 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5787266-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeBoard Edge, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesBoard Lock, Shielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40); Latchblocks, Rails
Rows2
Backset spacing0.146\" (3.71mm)
Positions50

Product details

50-Position High-Density D-Sub for Board-Edge Signal I/O

The TE 5787266-5 is a 50-position receptacle from the AMPLIMITE.050 III series, TE's high-density D-subminiature line that packs twice the contacts into the same shell footprint as a standard D-sub. The 0.050-inch pitch and 0.100-inch row spacing let you route a dense signal bundle through a single connector — think parallel data buses, video interfaces, or multi-channel I/O on a compact card.

Shielded Construction and Board Locks for Signal Integrity

For a high-density signal connector in a noisy digital environment, the combination of shell grounding and mechanical retention is what keeps the link up over temperature and time.

Mates with the matching plug connector — the flange includes 4-40 threaded inserts and latchblocks.
