50 Circuits, 1 A per Contact — Signal-Density Fit

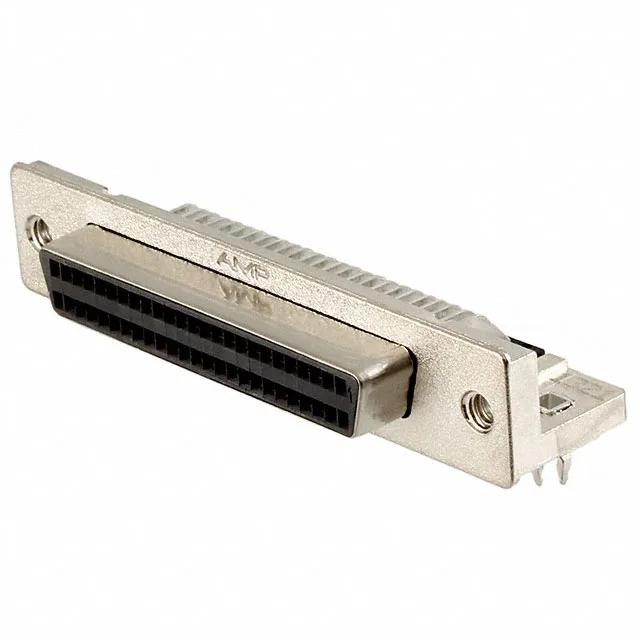

The 5787362-5: Each phosphor bronze contact is rated 1 A at 30 V, gold-plated on the mating interface. At 50 positions and 1 A per circuit, this is a signal-density interconnect — think parallel data buses, control lines, or low-current I/O — not a power rail. The right-angle orientation and board locks (integral retention posts that solder into the PCB) keep the connector anchored during assembly and under cable strain.
Shielded Shell and Board Locks for EMI and Mechanical Retention
The housing/shell flange is threaded for 4-40 jackscrews, which lock the mating pair together and pull the shell faces into contact for low-impedance shield continuity.
TE Connectivity lists the 5787362-5 as Active and ROHS3 Compliant.
