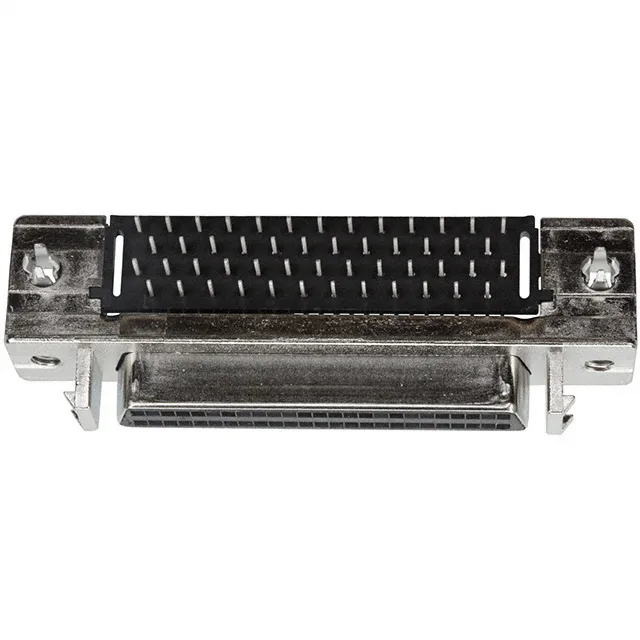

5787395-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE .050 III 5787395-5

MPN5787395-5
Active

TE Connectivity AMPLIMITE.050 III, 5787395-5, D-type receptacle, 50 positions, 2 rows, 0.050 pitch, 1A, 30V, right-angle, through-hole, solder, shielded, board lock, gold contacts, UL94 V-0.

$9.1700Ref. price · indicative, final on quote
5787395-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5787395-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE .050 III
GenderSignal
Mounting typeBoard Edge, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating30V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageTube
FeaturesBoard Lock, Shielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40); Latchblocks
Rows2
Backset spacing0.146\" (3.71mm)
Positions50

Product details

High-Density D-Sub for Signal-Rich Boards

The TE Connectivity AMPLIMITE.050 III 5787395-5 is a 50-position D-type receptacle with female sockets arranged in two rows at a 0.050 pitch x 0.100 row-to-row spacing — a compact footprint that packs more signals into the same panel cutout as a standard-density D-sub.

With 50 circuits in two rows, this receptacle matches a BOM line requiring that exact position count. The backset spacing of 0.146 inches (3.71 mm) sets the distance from the board edge to the connector face, which affects enclosure clearance for the mating plug and cable strain relief.

Mating and Termination Checks

This receptacle mates with a standard AMPLIMITE.050 III plug (male pin) connector — the D-type shell, 4-40 threaded inserts, and latchblocks are the mechanical interface. Termination is solder to through-hole — no press-fit or IDC option. The shield connects through the shell to the board ground plane via the solder tails; the steel shell with nickel plating provides the EMI path.

Frequently asked questions

What is the mating connector for 5787395-5?

The mating connector is a standard AMPLIMITE.050 III D-sub plug (male pins) with the same shell size and 4-40 threaded latchblocks — the D-type interface is keyed to prevent mis-mating.

Is 5787395-5 RoHS compliant?

Yes, the 5787395-5 is RoHS compliant.
