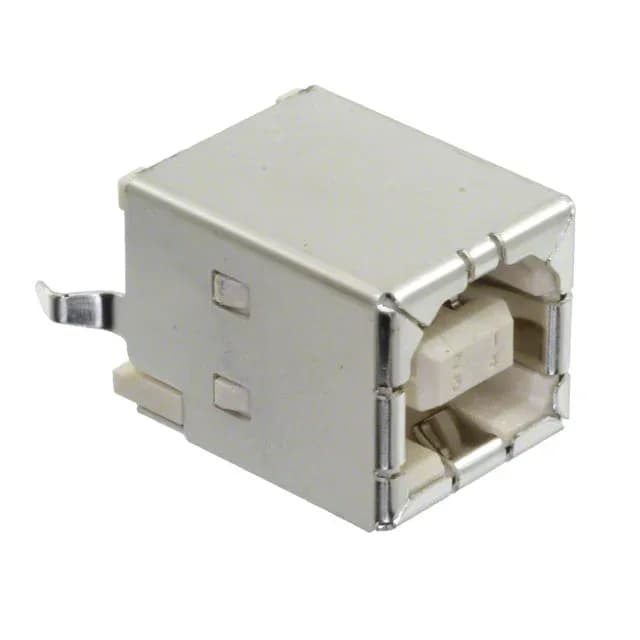

USB Type-B Receptacle for Device-Side Ports
It provides 4 contacts in a single vertical orientation, accepting the matching Type-B plug from a standard USB cable. Rated at 1 A per contact and 30 VAC, it handles the VBUS power and differential data lines of a USB 2.0 interface. The through-hole solder termination and integrated board lock anchor the port against the mechanical stress of repeated cable insertions.
1500 Mating Cycles and Contact Finish
Vertical Mount with Board Lock
The vertical mounting feature means the USB cable inserts perpendicular to the PCB, which suits panel-mount or edge-located ports where the cable exits straight out from the board. The natural insulation colour and UL94 V-0 flammability rating meet standard enclosure requirements.
USB 2.0 — Not USB 3.0 Compatible
It is not electrically or mechanically compatible with USB 3.0 Type-B connectors, which have additional contacts for SuperSpeed signals and a different internal geometry. If your design requires USB 3.0, you need a different receptacle.
