Stacked Dual Receptacle for High-Density I/O

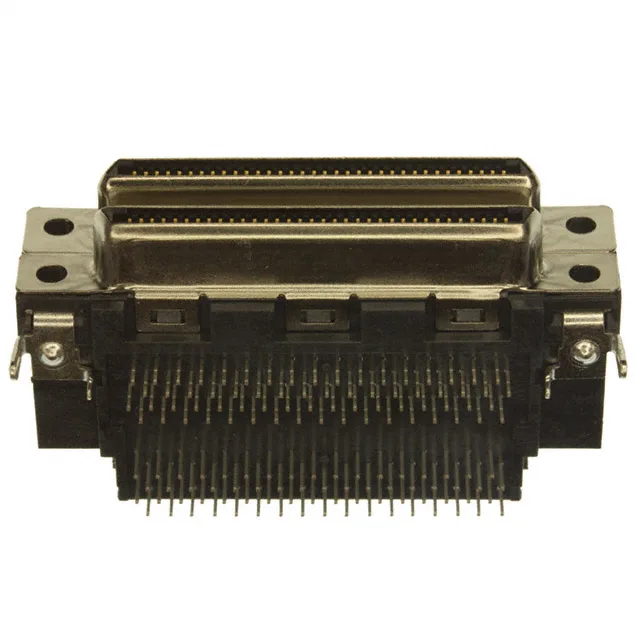

The TE 5787962-1 is a CHAMP.031 series stacked dual receptacle — two independent 68-position receptacles housed in a single right-angle shell, giving you 136 total contacts in one connector body. The outer shroud contact design means the mating interface is recessed inside a metal shell, not exposed pins, which protects the contacts during handling and mating. The shell is shielded for EMI containment, and the flange includes M2.6 threaded inserts for chassis mounting — typical for parallel data buses, multi-cable breakout panels, or dense I/O backplanes where you need to consolidate two cable assemblies into one board footprint.
68+68 Positions, Right-Angle Solder, Panel Mount
The 5787962-1 carries 68 positions per receptacle, two rows each, for a total of 136 circuits. The panel mount flange with M2.6 hardware takes the strain off the solder joints; the board locks handle the rest. The CHAMP.031 series uses a 0.031-inch (0.79 mm) contact pitch, so the board footprint is dense; verify the PCB layout accommodates the two-receptacle keep-out zone before committing the BOM.
