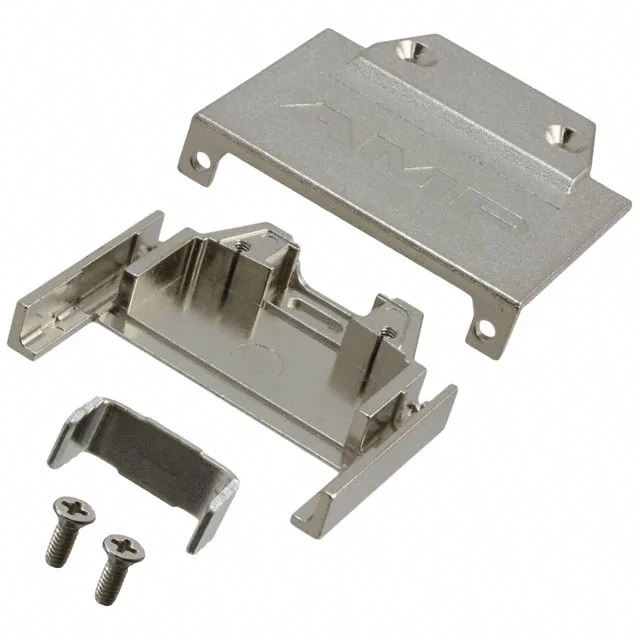

5788362-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE CHAMP 5788362-1 Backshell, 68 Pos, 180° Exit, Silver

MPN5788362-1
Active

TE Connectivity CHAMP series two-piece backshell, 5788362-1, 68 positions, 180° cable exit, nickel over copper plating, includes assembly hardware and strain relief, silver color, zinc metal construction.

$14.7500Ref. price · indicative, final on quote
5788362-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5788362-1 Technical Specifications
ParameterValue
SeriesCHAMP
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit180°
ColorSilver
MaterialMetal, Zinc
Primary materialMetal
PackageBag
PlatingNickel over Copper
HardwareAssembly Hardware, Strain Relief
Positions68

Product details

Backshell for the CHAMP 68-Position Connector

The TE Connectivity 5788362-1 is a two-piece backshell from the CHAMP series, designed to fit a 68-position connector. The backshell is constructed from zinc metal with a nickel over copper plating, giving it a silver appearance. This metal construction provides EMI shielding continuity when mated with a compatible CHAMP connector, and the nickel plating offers corrosion resistance for industrial environments.

What Hardware Is Included

The 5788362-1 ships with assembly hardware and a strain relief mechanism included — no separate hardware kit to order. The two-piece shell clamps around the cable jacket, and the strain relief grips the cable to prevent pull-out forces from reaching the connector contacts. This is a field-service-friendly design: the backshell can be opened for cable rework or re-termination without destroying the assembly.

Position Count and Compatibility

This backshell is sized for the full-density CHAMP connector at 68 positions.

Frequently asked questions

Is 5788362-1 RoHS compliant?

Yes, the 5788362-1 is ROHS3 Compliant, meeting the latest EU RoHS directive requirements for restricted substances.

Does the 5788362-1 backshell include mounting hardware?

Yes, assembly hardware and a strain relief mechanism are included with the backshell — no separate hardware kit is required.

What is the cable exit orientation for 5788362-1?

The cable exit is 180°, meaning the cable routes straight out the back of the connector, parallel to the connector axis.
