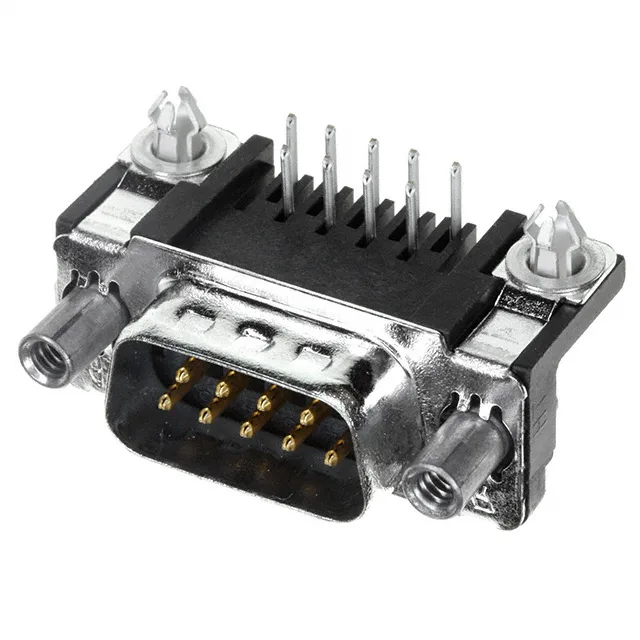

TE 5788793-2 AMPLIMITE HD-20 D-Sub Plug, 9-Pos Right Angle

MPN5788793-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 9 positions, 2 rows, right-angle through-hole solder, gold flash contacts, 6A, 125V, -55°C to 105°C, UL94 V-0.

$4.1200Ref. price · indicative, final on quote
5788793-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5788793-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyamide (PA), Nylon
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9
Contact finish thicknessFlash

Product details

Right-Angle DB-9 for Board-Edge and Harness Integration

It mates with the standard DE-9 receptacle shell layout, making it the male half for a DB-9 serial, instrumentation, or industrial control interconnect.

Through-hole right-angle solder termination — the pins are long enough for a solid solder fillet on the PCB bottom side. The flange uses a Mating Side, Female Screwlock (4-40) pattern, so you secure the mating receptacle with standard 4-40 jackscrews. The steel shell is tin-plated for solderability and corrosion resistance. Package is tray — typical for machine placement or hand-loading in low-to-medium volume assembly.

Frequently asked questions

What is the mating connector for 5788793-2?

The 5788793-2 mates with a standard DE-9 (E shell layout) D-Sub receptacle — the female counterpart with the same 9-position, 2-row configuration. The flange uses 4-40 female screwlocks on the mating side.
