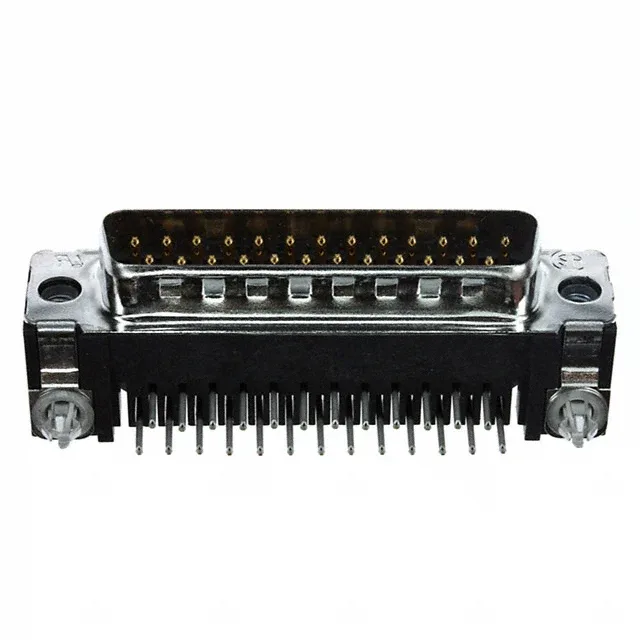

TE AMPLIMITE HD-20 5788794-1, 25-Pos D-Sub Plug, 6A

MPN5788794-1
Active

TE Connectivity AMPLIMITE HD-20 D-Sub Plug, 25 Positions, 2 Rows, Right Angle Through Hole, Solder, Gold Contacts, 6A, 125V, Steel Shell, Board Locks, Black Nylon, UL94 V-0.

$8.1100Ref. price · indicative, final on quote
5788794-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5788794-1 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyamide (PA), Nylon
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25

Product details

Right-Angle D-Sub for Board-Edge I/O

The TE Connectivity 5788794-1 is a 25-position right-angle D-sub plug from the AMPLIMITE HD-20 series, designed for through-hole soldering onto a PCB. Gold-plated brass contacts handle signal-level currents up to 6 A per circuit, and the steel shell with tin plating provides EMI shielding and mates with standard DB-25 receptacles via the 4-40 threaded flange.
