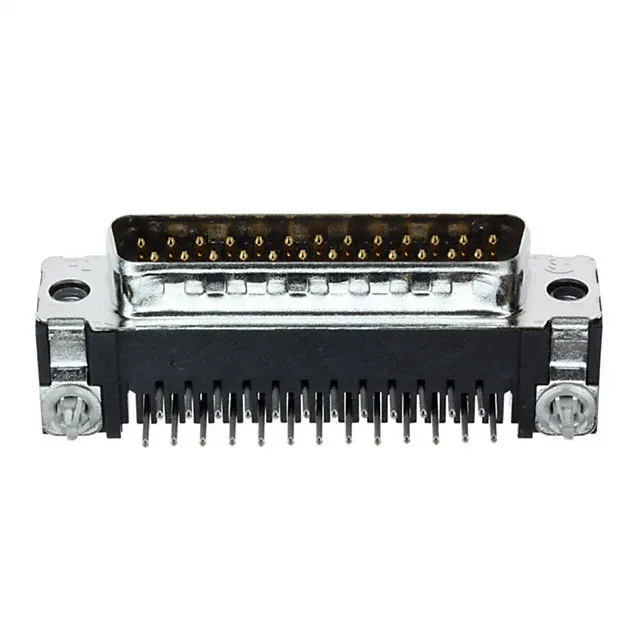

5788794-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity AMPLIMITE HD-20 5788794-2

MPN5788794-2
Active

TE Connectivity AMPLIMITE HD-20 series, D-Sub plug, 25 positions, 2 rows, right-angle through-hole solder, gold flash contacts, 6A, 125V, board lock, grounding indents, UL94 V-0.

$13.5900Ref. price · indicative, final on quote
5788794-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5788794-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyamide (PA), Nylon
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thicknessFlash

Product details

Right-Angle D-Sub Plug for Board-Edge I/O

The TE Connectivity 5788794-2 is a 25-position D-Sub plug from the AMPLIMITE HD-20 series, terminated via right-angle through-hole solder. Gold flash plating on the brass signal contacts handles the moderate mating cycle count typical of industrial equipment and test gear. The 6A per-contact rating at 125V covers signal-level and low-power auxiliary lines, not bus-level current.

Mounting and PCB Fit

Right-angle orientation with a 0.318" (8.08mm) backset spacing positions the shell face relative to the board edge. The through-hole solder tails require plated holes on a standard 0.108" row-to-row pitch — verify the footprint against the TE application drawing before layout sign-off. The housing/shell flange uses a 4-40 threaded insert, compatible with standard D-Sub hardware.

ROHS3 compliant.

Frequently asked questions

What is the pin count of 5788794-2?

The 5788794-2 has 25 positions arranged in 2 rows, standard DB-25 layout.

Is 5788794-2 a male or female connector?

It is a plug with male pins, the male half of a D-Sub pair.
