9-Position Right-Angle D-Sub for Board-Edge I/O
This is the standard DE-9 layout — the same shell size used for RS-232 serial ports and industrial I/O — so the footprint and panel cutout match the ubiquitous DB-9 pattern.

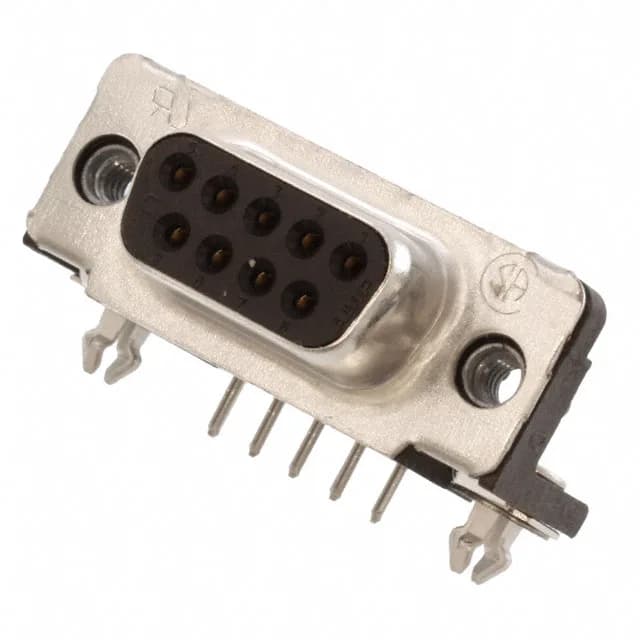

TE 5788796-1 AMPLIMITE HD-20 D-Sub Receptacle, 9-Pos R/A
MPN5788796-1
Active
TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle through-hole solder, 30 µ" gold-plated phosphor bronze contacts, rated 6 A at 125 V, steel shell with tin plating, board lock feature, UL94 V-0.
$3.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyamide (PA), Nylon |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 5788796-1?
This receptacle mates with a standard DE-9 (E shell size) D-Sub plug with 4-40 threaded hardware — any AMPLIMITE HD-20 or industry-standard 9-position D-Sub plug with the same shell layout and flange feature will fit.
Where can I buy 5788796-1 available via RFQ confirmation?
This part is sourced to order against your BOM quantity.
