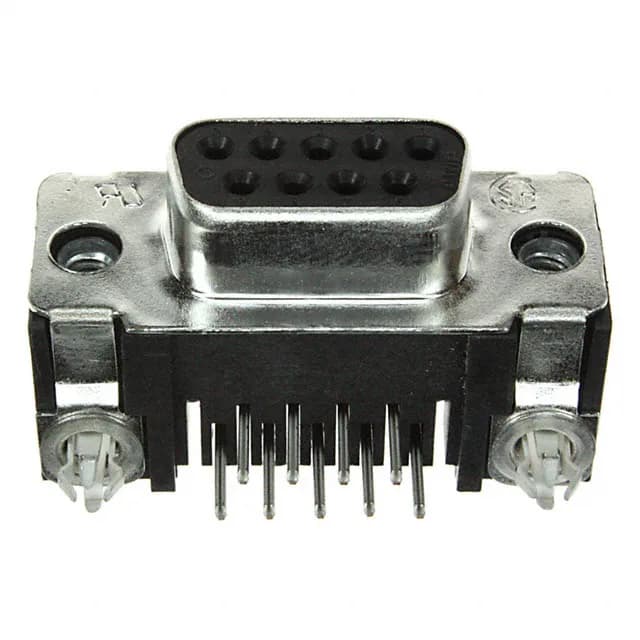

9-Position Right-Angle D-Sub for Board-Edge I/O
This is the standard DB-9 footprint — 9 circuits in two rows, shell size DE (E), with a 0.318" (8.08mm) backset spacing that positions the connector face relative to the PCB edge.
6A per contact is the rated current at the connector level — adequate for signal circuits and low-power auxiliary lines, but not a power interconnect.
Board Lock and Right-Angle Orientation for Strain Relief
The board lock feature — two metal tabs that solder into plated through-holes — is the primary mechanical retention for this right-angle receptacle. Without it, the cantilevered weight of a mated cable plug and the lever action of insertion/withdrawal cycles would fatigue the signal-pin solder joints over time. The housing/shell flange with 4-40 threaded inserts accepts the standard D-Sub locking hardware (jackscrews or slide locks) to secure the mating plug against vibration.
