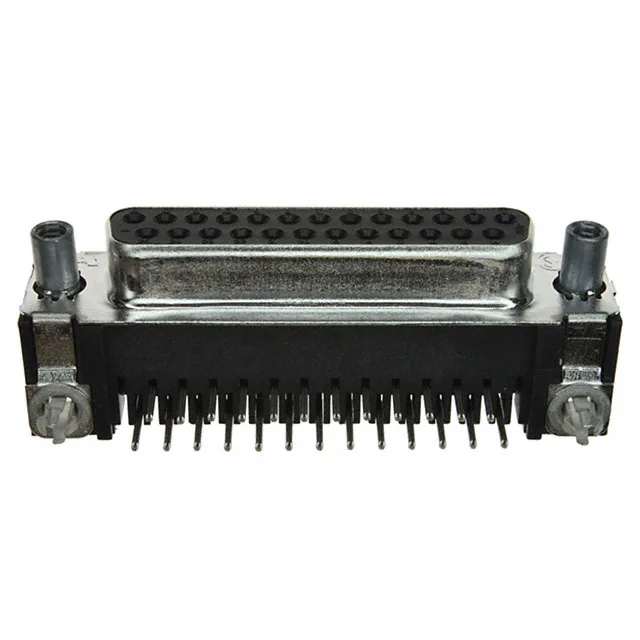

TE Connectivity 5788801-2 AMPLIMITE HD-20 D-Sub Receptacle

MPN5788801-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, right-angle PCB mount, solder termination, gold flash contacts, 6A rated, 125V, board lock, UL94 V-0.

$6.8700Ref. price · indicative, final on quote
5788801-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5788801-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyamide (PA), Nylon
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thicknessFlash

Product details

The TE Connectivity 5788801-2 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, configured for right-angle through-hole mounting. It carries the standard DB-25 shell layout (shell size 3, DB, B) and mates with the matching DB-25 plug.

Right-Angle Mounting and Board Layout

The right-angle solder tails exit the rear of the connector body and bend down to the PCB, so the connector sits flush with the board edge. This is the standard footprint for a DB-25 right-angle D-sub: the row of 25 pins (two rows, 13 and 12 staggered) occupies about 1.2 inches of board edge. This is the dimension that governs how much space you need behind the panel for the mating plug body and cable bend radius. If your enclosure has a tight interior depth, check that the mated pair will fit.

The contact finish is gold flash, which is a thin gold layer over the phosphor bronze base.
