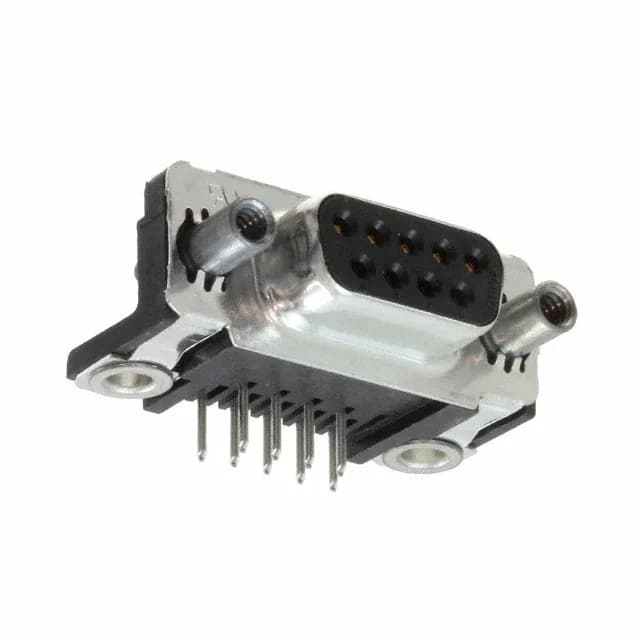

D-Sub Receptacle for Board-Edge I/O, 9 Positions, Right-Angle Solder
Right-Angle Mounting and Screwlock Retention
The backset spacing of 0.318" (8.08mm) defines the offset from the PCB edge to the connector face — verify this dimension against your panel cutout. Mating-side female screwlocks with 4-40 thread secure the connector pair against vibration; the screwlocks are on the receptacle, so the mating plug needs male screwlocks or a lockable backshell.
For continuous current near 6A on all pins, derate above 85°C ambient per the standard derating curve.
Mating and Accessory Compatibility
The female screwlocks on this receptacle are fixed; the mating plug must provide the male 4-40 threaded insert. A separate backshell is not required for basic operation, but a shielded backshell with screwlock pass-through is recommended for EMI-sensitive applications or where cable strain relief is needed. The shell size 1 (DE, E) footprint is standard — the PCB layout matches the industry-standard DE-9 hole pattern.
